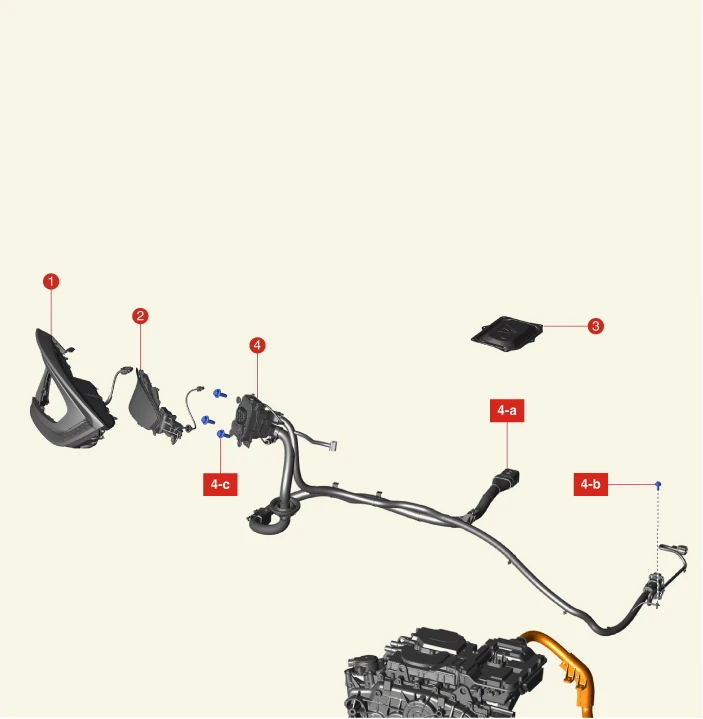

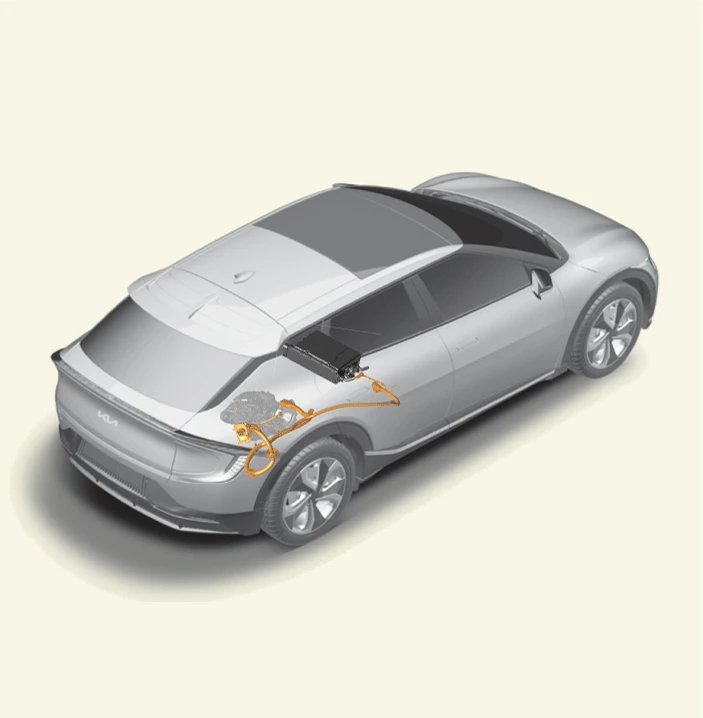

Component
1. Rear Combination Lamp
2. Charge Door Assembly
3. Service Cover
4. Combo Charger Inlet Assembly
4-a. 9.8 - 10.8 N·m (1.0 - 1.1 kgf·m, 7.2 - 8.0 lb·ft)
4-b. 7.8 - 9.8 N·m (0.8 - 1.0 kgf·m, 5.8 - 7.2 lb·ft)
4-c. 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
Description
Charging starts when the In-Cable Control Box (ICCB) is connected to the normal charge port or the quick charge connector is connected to a quick charge port.
Removal
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working on high voltage system or related components, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Shut off the high voltage circuit.(Refer to Battery Control System (Standard) - “High Voltage Shut-off Procedure”)
2.Remove the rear seat assembly.(Refer to Body - "Rear Seat Assembly")
3.Remove the right rear combination lamp.(Refer to Body Electrical System - "Rear Combination Lamp")
4.Remove the combo charger inlet assembly (A) by removing the bolts.
Tightening torque :7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
5.Disconnect the connector (A).

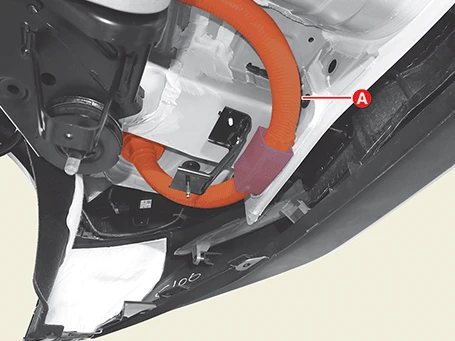

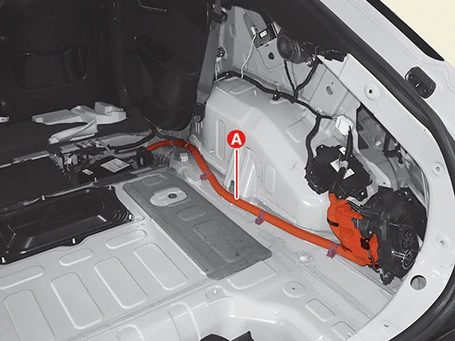

6.Remove the combo charger inlet assembly (A) from the body.

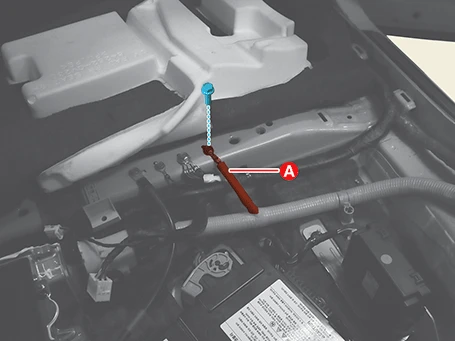

7.Remove the ground cable (A) after removing the bolt.
Tightening torque :7.8 - 9.8 N·m (0.8 - 1.0 kgf·m, 5.8 - 7.2 lb·ft)

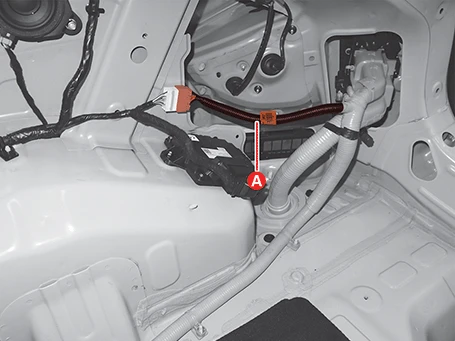

8.Disconnect the combo charger inlet assembly connector (A).

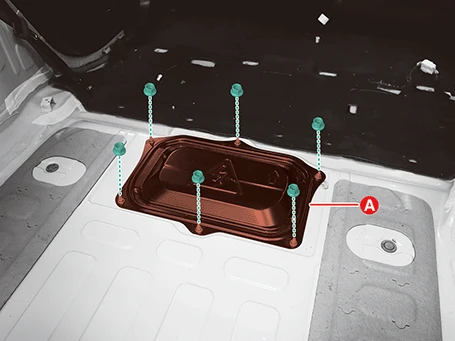

9.Remove the quick charge connector service cover (A).
Tightening torque :7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

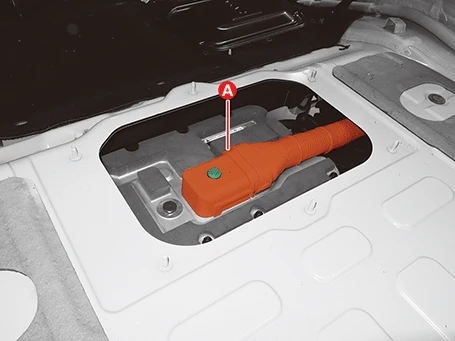

10.Disconnect the quick charge connector (A).
Tightening torque :9.8 - 10.8 N·m (1.0 - 1.1 kgf·m, 7.2 - 8.0 lb·ft)

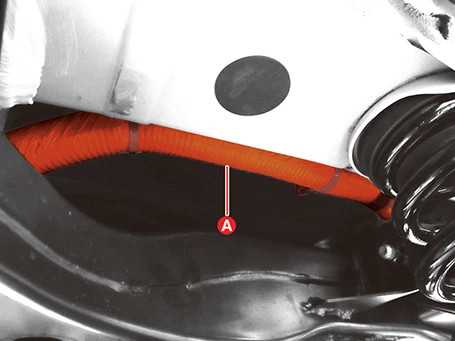

11.Separate the cable fixing clip (A).
12.Remove the rear cross member under cover.(Refer to Motor and Reduction Gear System - "Rear Under Cover")

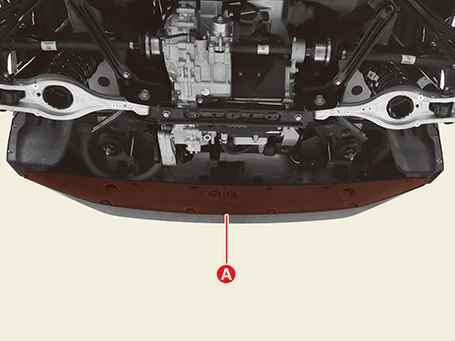

13.Remove the rear under cover (A).

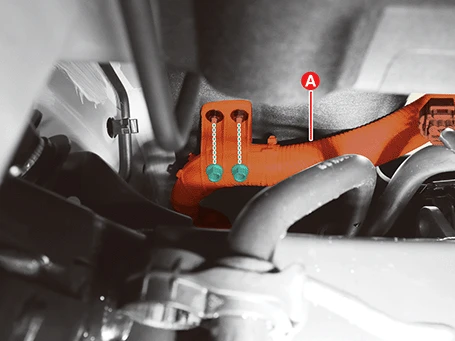

14.Separate the combo charger inlet assembly (A) from the body frame after removing the fasteners and nuts.
Tightening torque :7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
Installation
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working on high voltage system or related components, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Install in the reverse order of removal.
2.After replacing the combo charger inlet assembly and the related parts, vehicle should be checked that it charges normally.
