Kia EV6: Description and Operation

Description

Electric Power Conversion System Description

• The electric power conversion is a system that converts power (AC/DC ↔ DC/AC) according to its use.

• It converts more than one of the voltage, current frequency or phrase without loss of power.

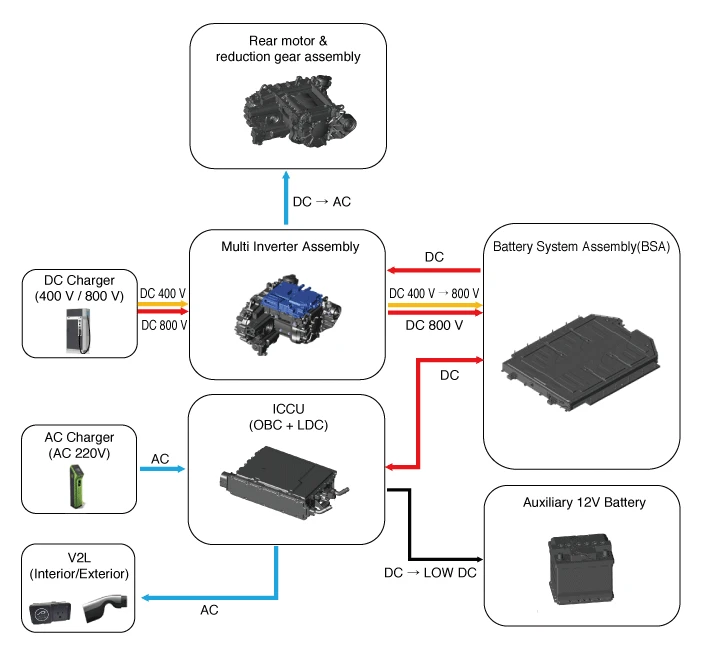

Electric Power Conversion System Configuration

Kia EV6. Description and Operation
