Kia EV6: Components and Components Location

Component

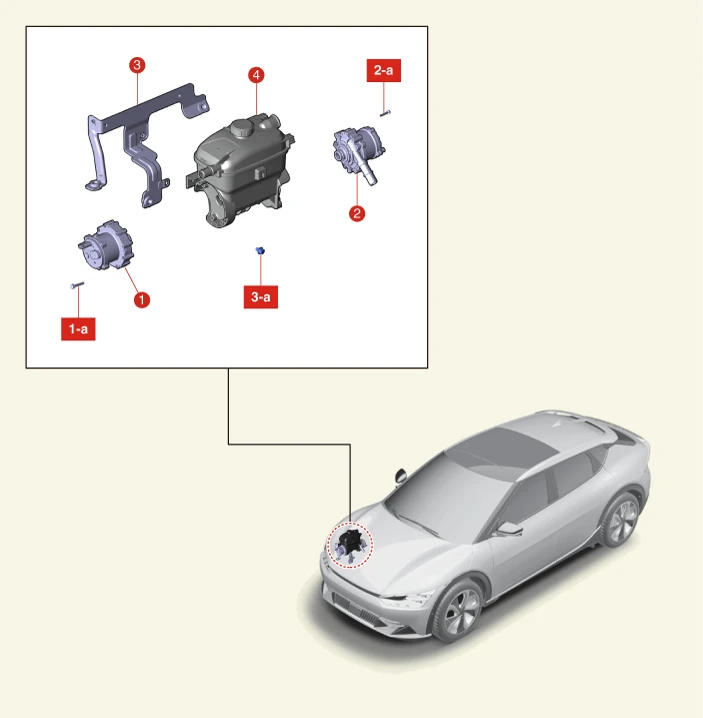

Kia EV6. Components and Components Location

1. Battery Electronic Water Pump (EWP) 1
1-a. 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
2. Motor Electric Water Pump (EWP)
2-a. 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
3. Reservoir Tank Bracket
3-a. 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
4. Reservoir Tank

Reservoir tank

...
