Kia EV6: Front Motor and Reduction gear Mounting

Components and Components Location

Kia EV6. Front Motor and Reduction gear Mounting

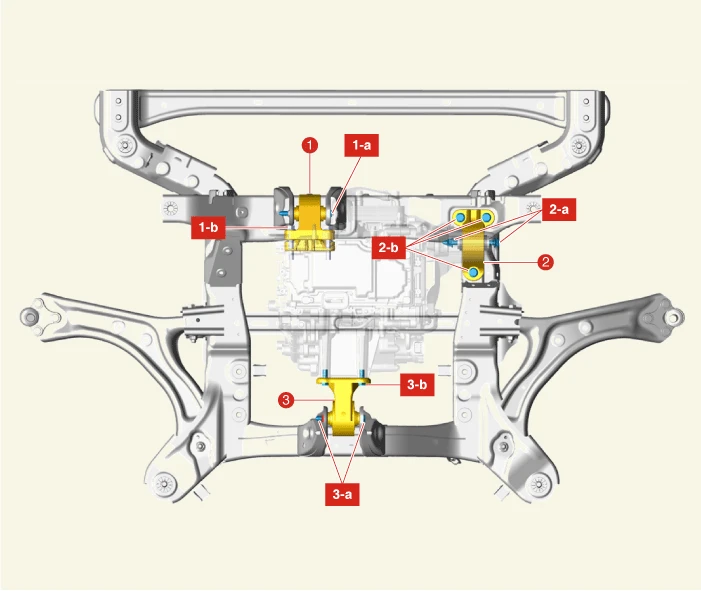

1. LH Motor Mounting Bracket
1-a. 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)
1-b. 63.7 - 83.4 N·m (6.5 - 8.5 kgf·m, 47.0 - 61.5 lb·ft)
2. RH Motor Mounting Bracket
2-a. 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94 lb·ft)
2-b. 63.7 - 83.4 N·m (6.5 - 8.5 kgf·m, 47.0 - 61.5 lb·ft)
3. RR Motor Mounting Bracket
3-a. 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)
3-b. 63.7 - 83.4 N·m (6.5 - 8.5 kgf·m, 47.0 - 61.5 lb·ft)


Special Service Tool

Tool Name / Number Illustration Description
Engine fixture (adapter)
09200 - 4X000

Kia EV6. Front Motor and Reduction gear Mounting

Used for anchoring the motor and reducer gear when removing and installing the motor and reducer gear

Removal

LH Motor Mounting Bracket

1.Remove the front motor and reduction gear assembly.(Refer to Front Motor and Reduction Gear System - "Front Motor and Reduction Gear Assembly")

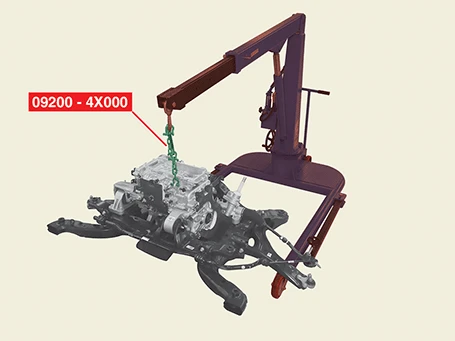

2.Support the motor and reduction gear assembly using engine cranes and SST (09200 - 4X000).

Kia EV6. Front Motor and Reduction gear Mounting

Kia EV6. Front Motor and Reduction gear Mounting

Install the SST (09200 - 4X000) to the front motor and reduction gear assembly hanger.

Kia EV6. Front Motor and Reduction gear Mounting

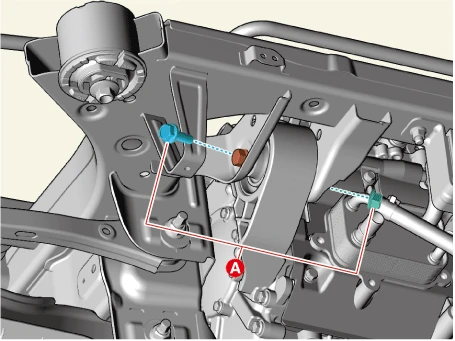

3.Remove the motor mounting bracket bolts and nuts (A).

Tightening torque :107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

Kia EV6. Front Motor and Reduction gear Mounting

4.Remove the front motor and reduction gear assembly from the front sub frame by lifting the engine crane upward.

Kia EV6. Front Motor and Reduction gear Mounting

• Be careful not to damage the high voltage connector.

• Be careful not to damage the parts of the motor and reduction gear assembly.

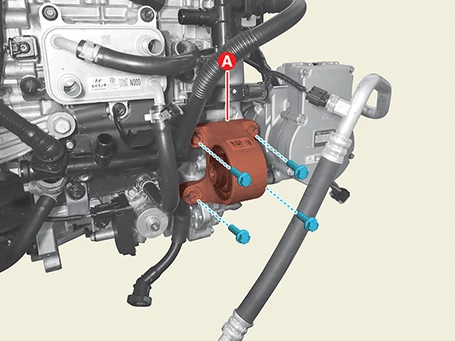

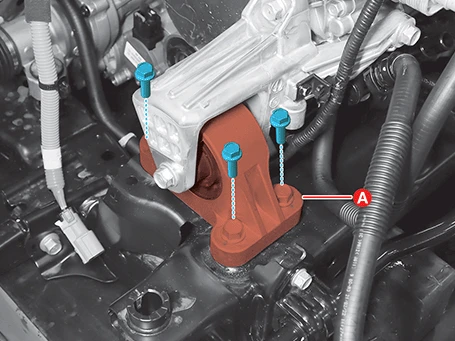

5.Remove the LH motor mounting bracket (A) after removing the mounting bolts.

Tightening torque :63.7 - 83.4 N·m (6.5 - 8.5 kgf·m, 47.0 - 61.5 lb·ft)

Kia EV6. Front Motor and Reduction gear Mounting

RH Motor Mounting Bracket

1.Remove the front motor and reduction gear assembly.(Refer to Front Motor and Reduction Gear System - "Front Motor and Reduction Gear Assembly")

2.Support the motor and reduction gear assembly using engine cranes and SST (09200 - 4X000).

Kia EV6. Front Motor and Reduction gear Mounting

Kia EV6. Front Motor and Reduction gear Mounting

Install the SST (09200 - 4X000) to the front motor and reduction gear assembly hanger.

Kia EV6. Front Motor and Reduction gear Mounting

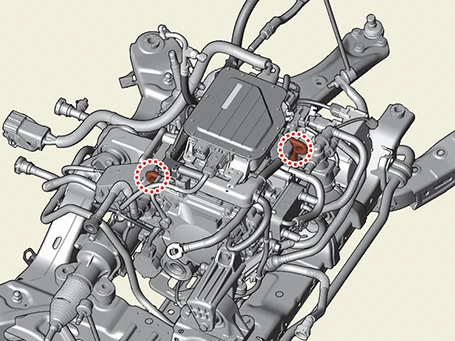

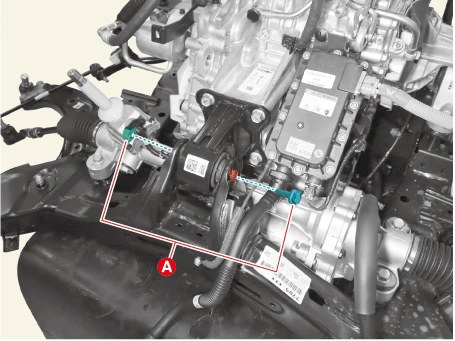

3.Remove the RH motor mounting bracket bolt and nut (A).

Tightening torque :107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

Kia EV6. Front Motor and Reduction gear Mounting

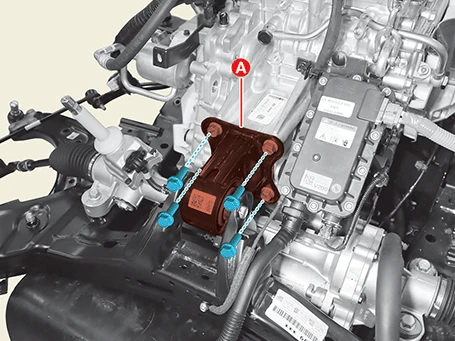

4.Remove the RH motor mounting bracket (A) after removing the mounting bolts.

Tightening torque :63.7 - 83.4 N·m (6.5 - 8.5 kgf·m, 47.0 - 61.5 lb·ft)

Kia EV6. Front Motor and Reduction gear Mounting

RR Motor Mounting Bracket

1.Remove the front motor and reduction gear assembly.(Refer to Front Motor and Reduction Gear System - "Front Motor and Reduction Gear Assembly")

2.Support the motor and reduction gear assembly using engine cranes and SST (09200 - 4X000).

Kia EV6. Front Motor and Reduction gear Mounting

Kia EV6. Front Motor and Reduction gear Mounting

Install the SST (09200 - 4X000) to the front motor and reduction gear assembly hanger.

Kia EV6. Front Motor and Reduction gear Mounting

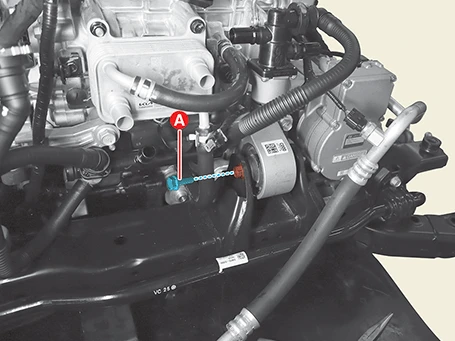

3.Remove the RR motor mounting bolt and nut (A).

Tightening torque :107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

Kia EV6. Front Motor and Reduction gear Mounting

4.Remove the RR motor mounting bracket (A) after removing the mounting bolts.

Tightening torque :63.7 - 83.4 N·m (6.5 - 8.5 kgf·m, 47.0 - 61.5 lb·ft)

Kia EV6. Front Motor and Reduction gear Mounting

Installation

LH Motor Mounting Bracket

1.Install in the reverse order of removal.

RH Motor Mounting Bracket

1.Install in the reverse order of removal.

RR Motor Mounting Bracket

1.Install in the reverse order of removal.
