Special Service Tool
| Tool Name / Number | Illustration | Description |
|
Reduction gear oil seal installer 09445 - GI100 |
|
Front reduction gear case and housing oil seal installation (Used with the handle) |
|
Handle 09231 - H1100 |
|
Used with the oil seal installer |
Replacement
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working on high voltage system or related system, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Drain the front motor and reduction gear oil.(Refer to Front Motor and Reduction Gear System - "Front Motor and Reduction Gear Oil")
2.Remove the front driveshaft assembly.(Refer to Driveshaft Assembly - "Front Driveshaft")
3.Remove the oil seal (A).

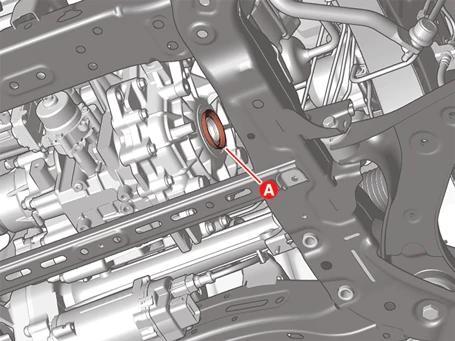

Case side

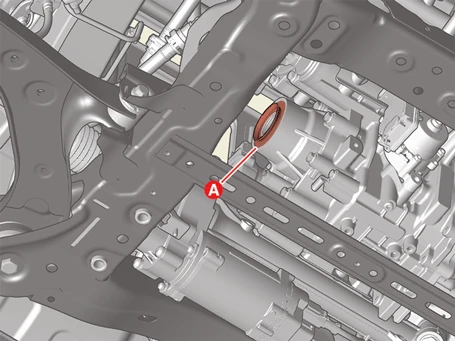

Housing side
4.When installing a new oil seal, use the SST (09445 - GI100, 09231 - H1100).

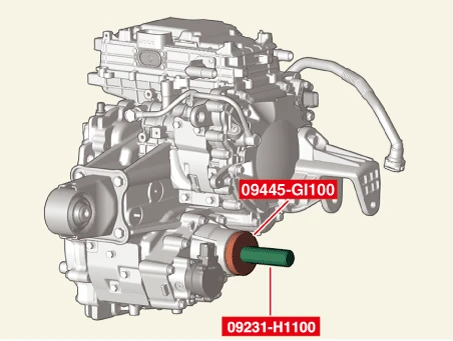

Case side

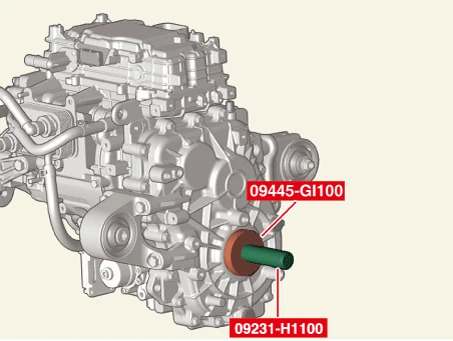

Housing side
5.Install the front driveshaft assembly.(Refer to Driveshaft Assembly - "Front Driveshaft")
6.Refill the front motor and reduction gear oil.(Refer to Front Motor and Reduction Gear System - "Front Motor and Reduction Gear Oil")
