Kia EV6: Rear Motor Cover

Removal

Kia EV6. Rear Motor Cover

• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.

• When working a high voltage system, the technician must be recognized and observe "General Safety Information and Caution". If do not follow, serious accidents like electric shock and short circuit are caused.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.

Rear Motor Front Cover

1.Remove the rear cross member under cover.(Refer to Rear Motor and Reduction Gear System - "Rear Under Cover")

2.Remove the rear motor lower cover.

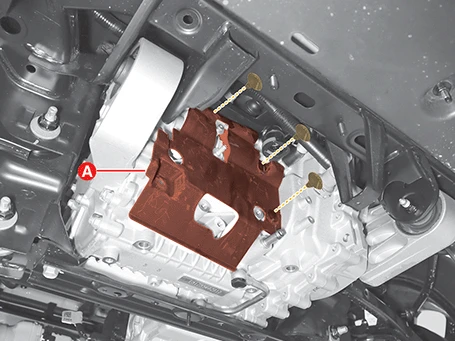

3.Remove the rear motor front cover (A) after removing the fasteners.

Kia EV6. Rear Motor Cover

Rear Motor Lower Cover

1.Remove the rear cross member under cover.(Refer to Rear Motor and Reduction Gear System - "Rear Under Cover")

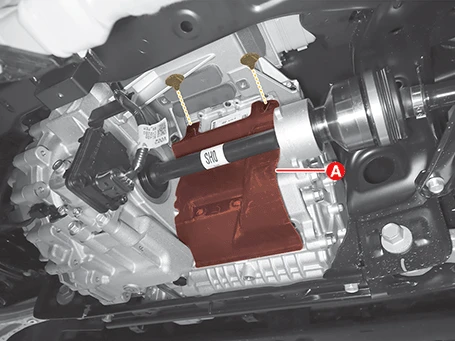

2.Remove the rear motor lower cover fasteners (A).

Kia EV6. Rear Motor Cover

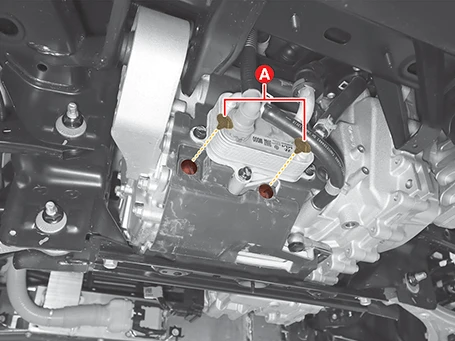

3.Remove the rear motor lower cover (A) after removing the fasteners.

Kia EV6. Rear Motor Cover

Rear Motor Rear Cover

1.Shut off the high voltage circuit.(Refer to Motor and Reduction Gear System - "High Voltage Shut-off Procedures")

2.Remove the rear cross member under cover.(Refer to Rear Motor and Reduction Gear System - "Rear Under Cover")

3.Remove the rear motor lower cover.

4.Remove the motor & reduction gear oil cooler.(Refer to Cooling System - "Motor & Reduction Gear Oil Cooler")

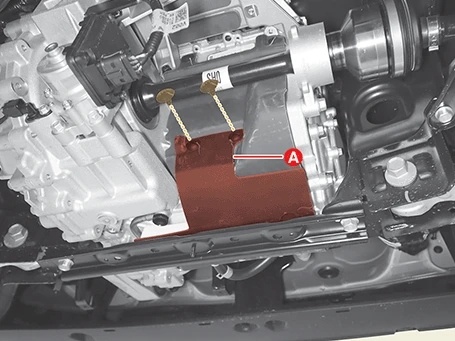

5.Remove the rear motor rear cover (A) after removing the fasteners.

Kia EV6. Rear Motor Cover

Installation

Rear Motor Front Cover

1.Install in the reverse order of removal.

Rear Motor Lower Cover.

1.Install in the reverse order of removal.

Rear Motor Rear Cover

1.Install in the reverse order of removal.
