Kia EV6: SBW(Shift By Wire) Lever

Component

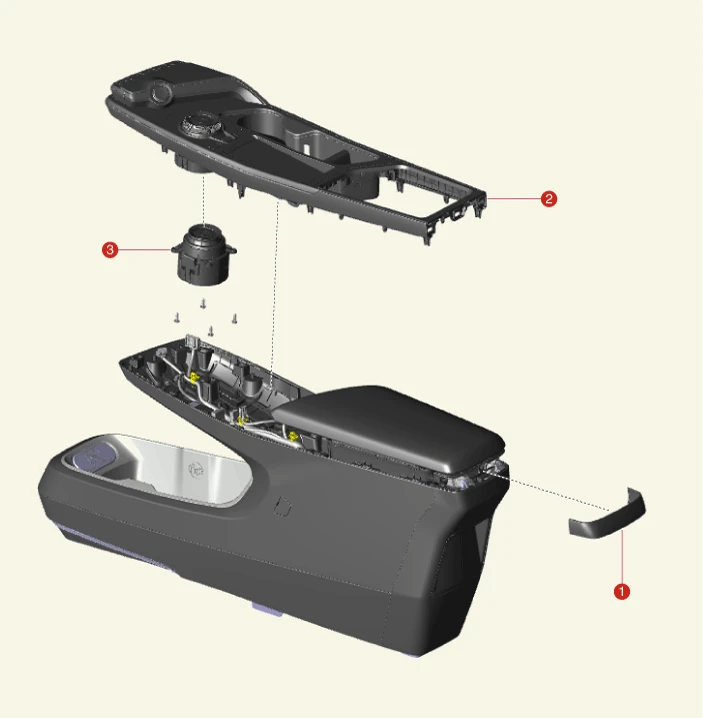

Kia EV6. SBW(Shift By Wire) Lever

1. Rear Console Cover
2. Floor Console Assembly
3. SBW Lever


Removal

Kia EV6. SBW(Shift By Wire) Lever

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")

2.Remove the floor console upper cover.(Refer to body - "Floor Console Upper Cover")

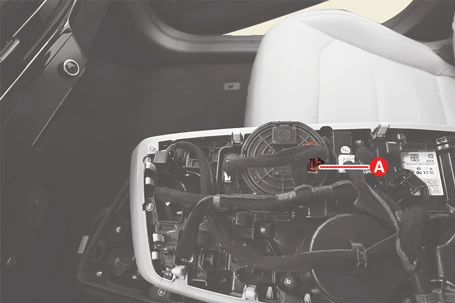

3.Disconnect the dial type SBW connector (A).

Kia EV6. SBW(Shift By Wire) Lever

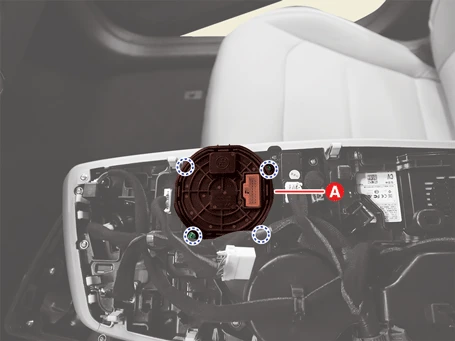

4.Remove the dial type SBW (A) after removing the screws.

Kia EV6. SBW(Shift By Wire) Lever

Installation

1.Install in the reverse order of removal.
