Service Information
| Item | Specification | |

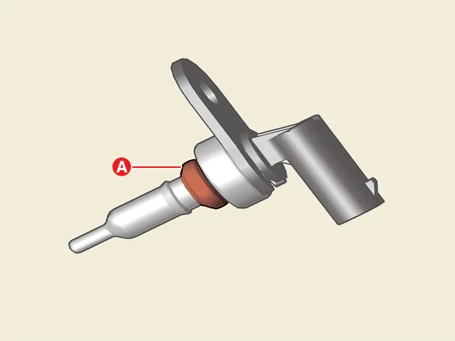

| Sensor Type | NTC thermistor | |
| Operating Voltage (V) | 4.75 - 5.25 | |
| Max current (mA) | 100 | |
| Response time | Test medium : Coolant | MAX. 5 sec |
| Oil temperature [°C (°F)] | -40 to 150 (-40 to 302) | |
Oil Temperature Sensor Table
| Temperature [°C (°F)] | Resistance (kΩ) | ||
| Minimum | Nomal | Maximum | |
| -40 (-40) | 41.74 | 48.14 | 54.54 |
| -30 (-22) | 23.54 | 26.74 | 29.94 |
| -20 (-4) | 14.13 | 15.48 | 16.83 |
| -10 (14) | 8.393 | 9.308 | 10.223 |
| 0 (32) | 5.281 | 5.790 | 6.299 |
| 10 (50) | 3.422 | 3.714 | 4.007 |
| 20 (68) | 2.310 | 2.450 | 2.590 |
| 30 (86) | 1.554 | 1.658 | 1.762 |
| 40 (104) | 1.084 | 1.148 | 1.212 |
| 50 (122) | 0.7729 | 0.8126 | 0.8524 |
| 60 (140) | 0.5615 | 0.5865 | 0.6115 |
| 70 (158) | 0.4154 | 0.4311 | 0.4469 |
| 80 (176) | 0.3122 | 0.3222 | 0.3322 |
| 90 (194) | 0.2382 | 0.2446 | 0.2510 |
| 100 (212) | 0.1844 | 0.1884 | 0.1924 |
| 110 (230) | 0.1451 | 0.1471 | 0.1491 |
| 120 (248) | 0.1139 | 0.1163 | 0.1187 |
| 130 (266) | 0.0908 | 0.0930 | 0.0953 |
| 140 (284) | 0.0731 | 0.0752 | 0.0773 |
| 150 (302) | 0.0594 | 0.0614 | 0.0634 |
Component

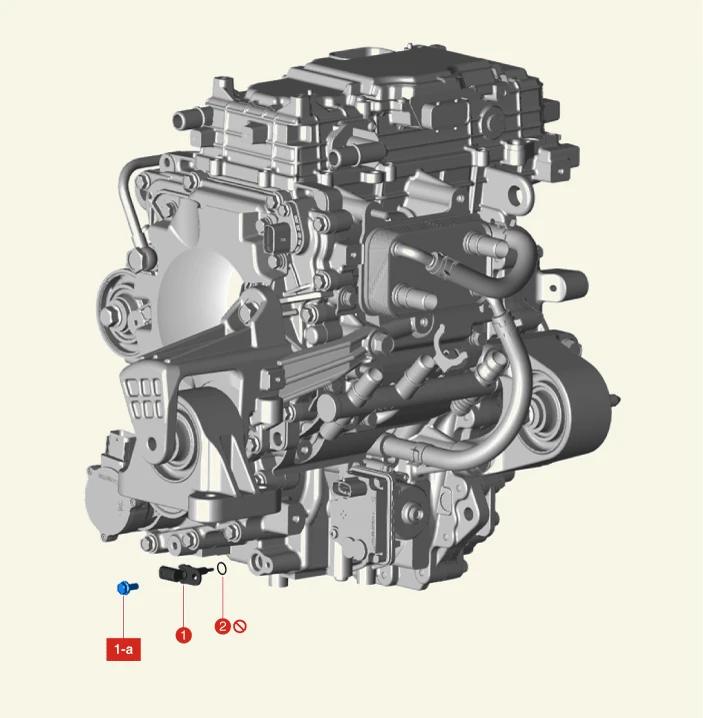

Front Motor
1. Oil Temperature Sensor
1-a. 9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
2. O-ring

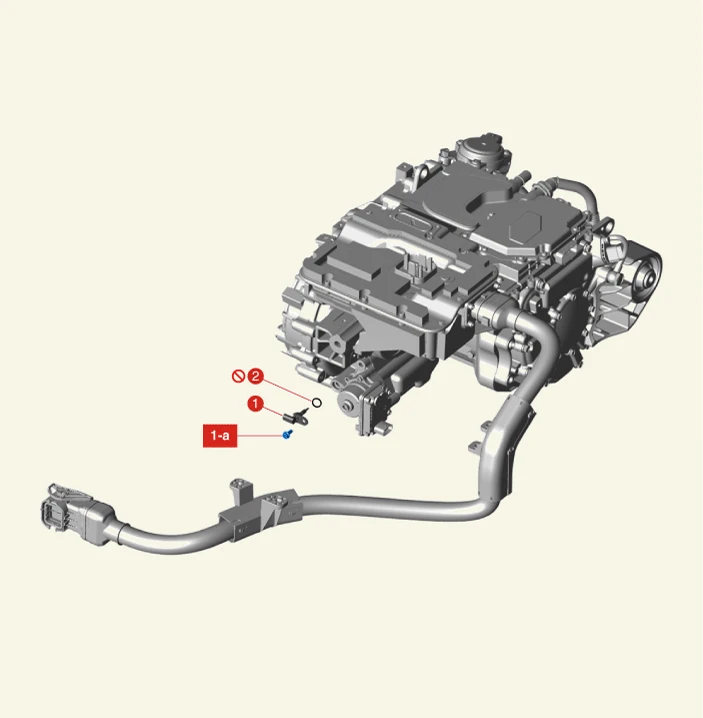

Rear Motor
1. Oil Temperature Sensor
1-a. 9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
2. O-ring
Removal
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working on high voltage system or related system, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery")
2.Remove the front under cover.(Refer to Front Motor and Reduction Gear System - "Front Under Cover")
3.Drain the front motor and reduction gear oil.(Refer to Front Motor and Reduction Gear System - "Front Motor and Reduction Gear Oil")

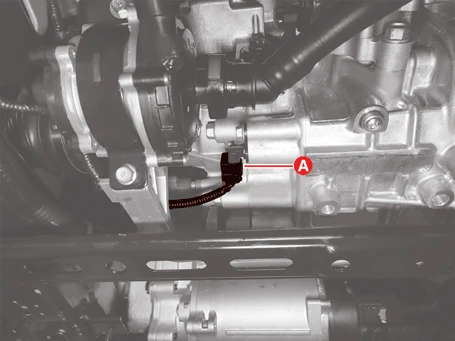

4.Disconnect the oil temperature sensor connector (A).

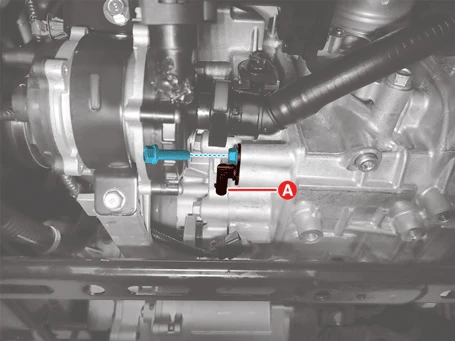

5.Remove the oil temperature sensor (A) after removing the bolt.
Tightening torque :9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
Installation
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working on high voltage system or related system, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Install in the reverse order of removal.
2.Refill the front motor and reduction gear oil.(Refer to Front Motor and Reduction Gear System - "Front Motor and Reduction Gear Oil")
Removal
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working on high voltage system or related system, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")
2.Remove the rear under cover.(Refer to Motor and Reduction Gear System - "Rear Under Cover")
3.Drain the rear motor and reduction gear oil.(Refer to Rear Motor and Reduction Gear System - "Rear Motor and Reduction Gear Oil")

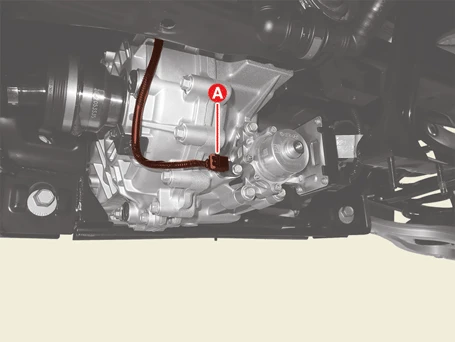

4.Disconnect the oil temperature sensor connector (A).

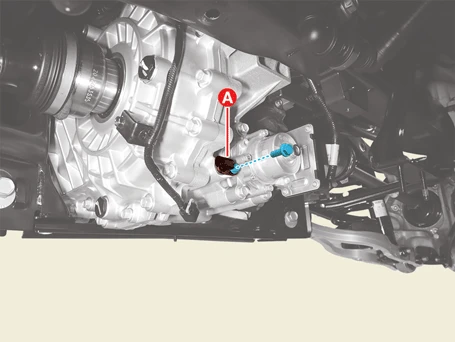

5.Remove the oil temperature sensor (A) after removing the bolt.
Tightening torque :9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
Installation
• When working on high voltage system, the work should be carried by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working on high voltage system or related system, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Install in the reverse order of removal.
2.Refill the rear motor and reduction gear oil.(Refer to Rear Motor and Reduction Gear System - "Rear Motor and Reduction Gear Oil")
