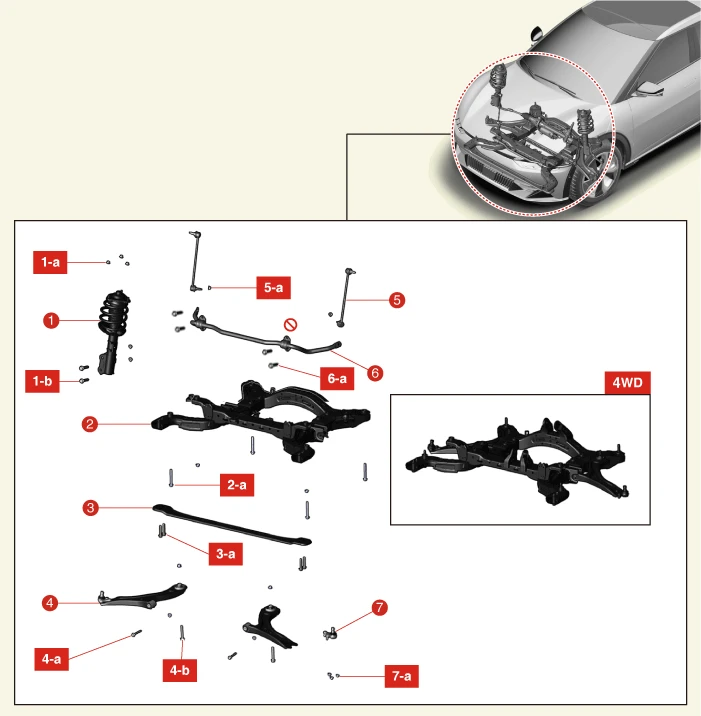

Components and Components Location

1. Front Strut Assembly
1-a. 53.9 - 68.6 N·m (5.5 - 7.0 kgf·m, 39.8 - 50.6 lb·ft)
1-b. 156.9 - 176.5 N·m (16.0 - 18.0 kgf·m, 115.7 - 130.2 lb·ft)
2. Front Sub Frame
2-a. 176.5 - 196.1 N·m (18.0 - 20.0 kgf·m, 130.2 - 144.7 lb·ft)
3. Front Sub Frame Bar
3-a. 166.7 - 186.3 N·m (17.0 - 19.0 kgf·m, 123.0 - 137.4 lb·ft)
4. Front Lower Arm
4-a. 117.7 - 137.3 N·m (12.0 - 14.0 kgf·m, 86.8 - 101.3 lb·ft)
4-b. 156.9 - 176.5 N·m (16.0 - 18.0 kgf·m, 115.7 - 130.2 lb·ft)
5. Front Stabilizer Bar Link
5-a. 98.1 - 117.7 N·m (10.0 - 12.0 kgf·m, 72.3 - 86.8 lb·ft)
6. Front Stabilizer Bar
6-a. 44.1 - 53.9 N·m (4.5 - 5.5 kgf·m, 32.5 - 39.8 lb·ft)
7. Front Lower Arm Ball Joint
7-a. 98.1 - 117.7 N·m (10.0 - 12.0 kgf·m, 72.3 - 86.8 lb·ft)
