Kia EV6: Trailing Arm

Removal

Kia EV6. Trailing Arm

If using a transmission jack to support a reduction gear, do not lift the vehicle too much. The center gravity of the vehicle may change and fall.

1.Remove the rear wheel and tires.(Refer to Tires/Wheels - "Wheel")

2.Remove the rear under cover.(Refer to Motor and Reduction Gear System - "Rear Under Cover")

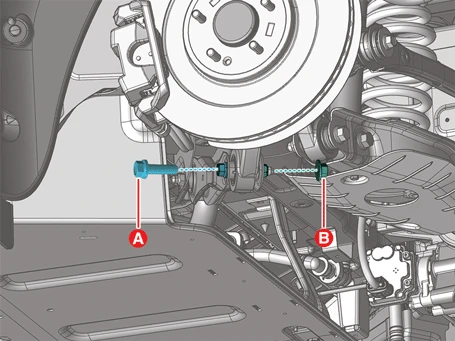

3.Remove the trailing arm bolt (A) and nut (B).

Tightening torque :117.7 - 137.3 N·m (12.0 - 14.0 kgf·m, 86.8 - 101.3 lb·ft)

Kia EV6. Trailing Arm

Kia EV6. Trailing Arm

• Install the transmission jack and lift up the parts to prevent the bolts and nuts from damage when installing or removing.

• Becareful not to change the bolt, nut and plate installing position.

Kia EV6. Trailing Arm

Hold the bolt and remove or install the nut.

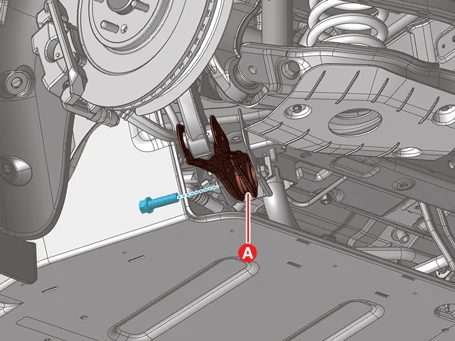

4.Remove the trailing arm (A) after removing the bolts.

Tightening torque :117.7 - 137.3 N·m (12.0 - 14.0 kgf·m, 86.8 - 101.3 lb·ft)

Kia EV6. Trailing Arm

Installation

1.Install in the reverse order of removal.

2.Check the alignment.(Refer to Alignment - "Repair Procedures")

Inspection

1.Check the bushing for wear and aging.

2.Check the trailing arm for bent or damage.

3.Check all bolts and nuts.
