Description
• Wheel alignment is all forces due to friction, gravity, centrifugal force and inertia operate in a balanced manner while driving.
• Wheel alignment improves linearity, grounding performance, tire life extension and fuel reduction and ensures safety at high speeds.
• Alignment adjustments consist of camber, castor, kingpin angle, toe, left, thrust angle, etc.
Components
Camber

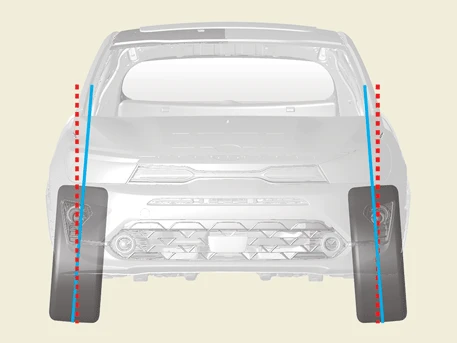

Camber refers to the angle at which the top of the wheel is tilted inward or outward relative to the vertical line started from the center of the floor when the vehicle is viewed from the front.– It facilitates steering control of the steering wheel and prevents bending of the front axle.

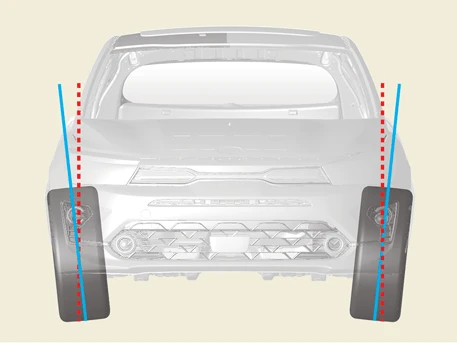

( + ) CamberIt is a camber form with wheels tilted outward from the top. It prevents the underside of the wheel from opening, so there is less tire wear due to unnecessary driving resistance on curves.

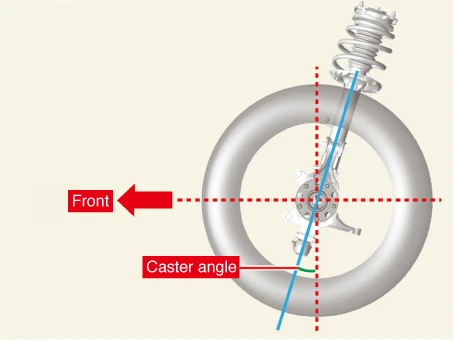

Caster
Caster refers to the angle at which the steering shaft tilts forward and backward relative to the vertical line initiated from the center of the wheel floor when the vehicle is viewed from the side.– It gives a straight line to the steering wheel when driving.
– Provides resilience to wheels when steering.
– It prevents shaking of wheels while driving.

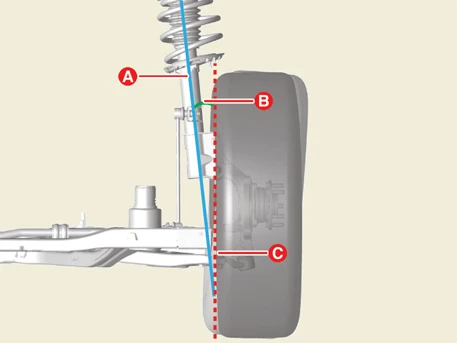

King pin angle
Kingpin angle refers to the angle at which the centerline of the steering shaft and the bottom vertical line forms when the vehicle is viewed from the front.– Provides easy steering of the steering wheel and resilience of the steering wheel.
– The kingpin angle and camber are also called Included Angle (I.A.). [Included Angle (I.A.)]
| Item | Descriptions |
| A | Steering Center Line |
| B | Kingpin |
| C | Center Line |

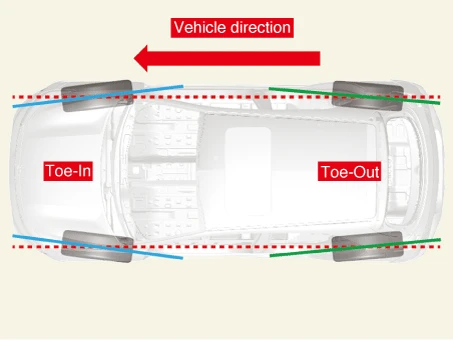

Toe
Toe is the tilted angle or distance at the front of the wheel when looking up and down at the vehicle.– The state in which the front of the wheel faces outward is called Toe out, and the state in which the front of the wheel faces inward is called Toe in.
– In general vehicles, toe-in is applied to prevent side slip.A phenomenon in which the wheels slide sideways due to the influence of the camber while the vehicle is driving.
– Tow-out is sometimes applied to vehicles that require a fast steering response when turning.

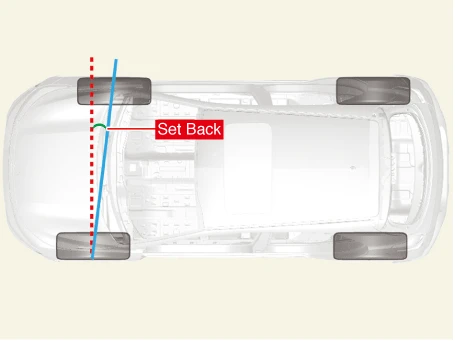

Set Back
Set back refers to the angle at which the line connects the center of the front wheels from the line perpendicular to the vehicle's centerline.– The main cause of the set back is the presence of an accident in the vehicle or an abnormality in the body.

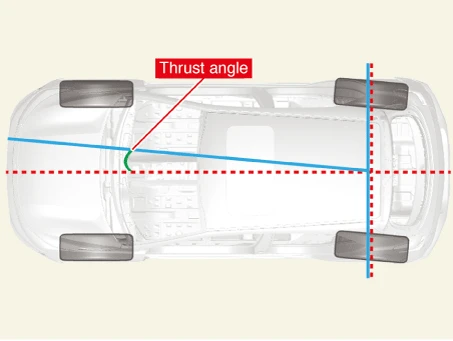

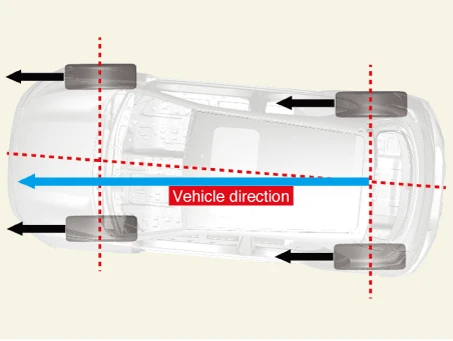

Thrust angle
The angle at which the Thrust line and the centerline of the vehicle are formed.※Thrust line: A line that is perpendicular to the center line of the rear axle.– Thrust conditions occur when the rear wheel individual toe is not the same.
