Kia EV6: Front Seat Frame Assembly

Removal

Kia EV6. Front Seat Frame Assembly

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

[Standard]

Front Seat Back Frame

1.Remove the lumbar support. (Refer to Front Seat - "Lumbar support")

2.Remove the side airbag (SAB) module.(Refer to Restraint - "Side Airbag (SAB) Module")

3.Remove the center side airbag (CSAB) module.(Refer to Restraint - "Center Side Airbag (CSAB) Module")

Front Seat Cushion Frame

1.Remove the front seat cushion assembly from the front seat cushion frame.(Refer to Front Seat - "Front Seat Cushion Cover")

[Sports]

1.Remove the side airbag (SAB) module.(Refer to Restraint - "Side Airbag (SAB) Module")

2.Remove the front seat cushion assembly from the front seat cushion frame.(Refer to Front Seat - "Front Seat Cushion Cover")

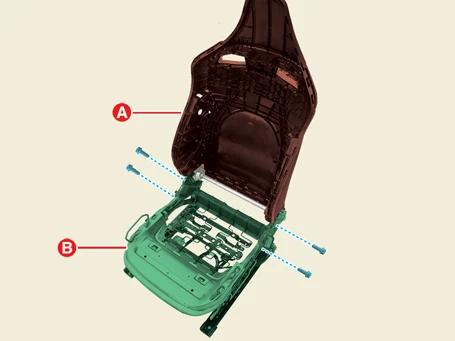

3.Remove the front seat back frame assembly (A) after removing the bolts from the front seat cushion frame assembly (B).

Kia EV6. Front Seat Frame Assembly

Installation

Kia EV6. Front Seat Frame Assembly

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
