Kia EV6 (CV) 2022–2025 Workshop Manual

Steering System / Motor Driven Power Steering (MDPS) / Components and Components Location /

Kia EV6: Components and Components Location

Component

Kia EV6. Components and Components Location

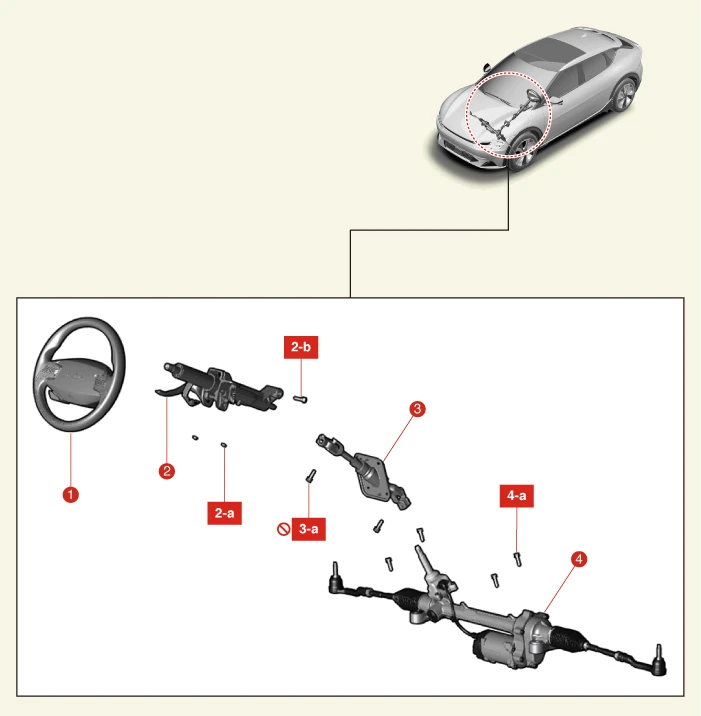

1. Steering Wheel
2. Steering Column Assembly
2-a. 24.5 - 29.4 N·m (2.5 - 3.0 kgf·m, 18.1 - 21.7 lb·ft)
2-b. 53.9 - 58.8 N·m (5.5 - 6.0 kgf·m, 39.8 - 43.4 lb·ft)
3. Universal Joint
3-a. 49 - 58.8 N·m (5.0 - 6.0 kgf·m, 36.2 - 43.4 lb·ft)
4. Steering Gear Box
4-a. 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94 lb·ft)

Motor Driven Power Steering (MDPS)

...

PREV

Description and Operation

Description The Motor Driven Power Steering (MDPS) system uses an electric motor to assist the steering force.The MDPS control module controls the motor operation according to information recei ...
