Kia EV6: Components and Components Location

Component

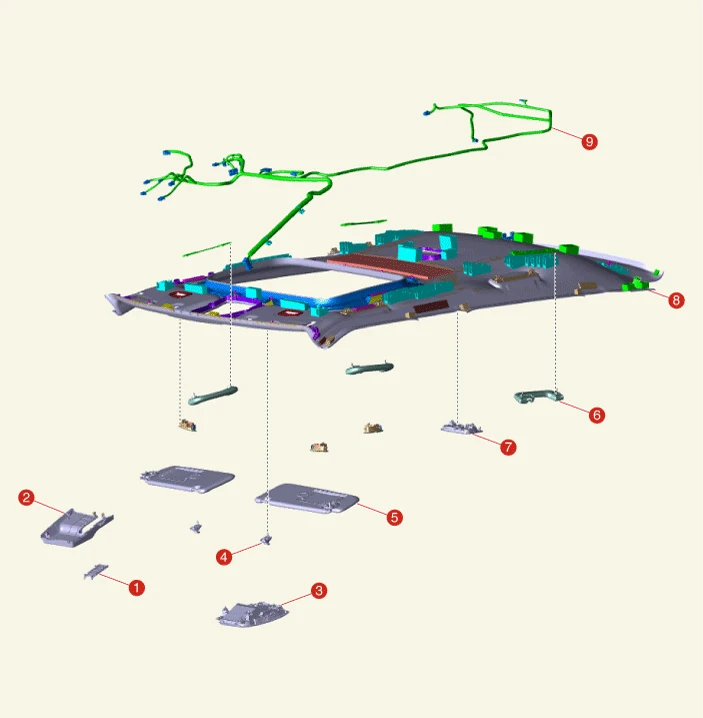

[Sunroof Type]

Kia EV6. Components and Components Location

1. Multi-Sensor Blanking Cover
2. Multi-Sensor Cover
3. Overhead Console Lamp
4. Sunvisor Retainer
5. Sunvisor
6. Assist Handle Guide
7. Room Lamp
8. Roof Trim Assembly
9. Roof Trim Harness

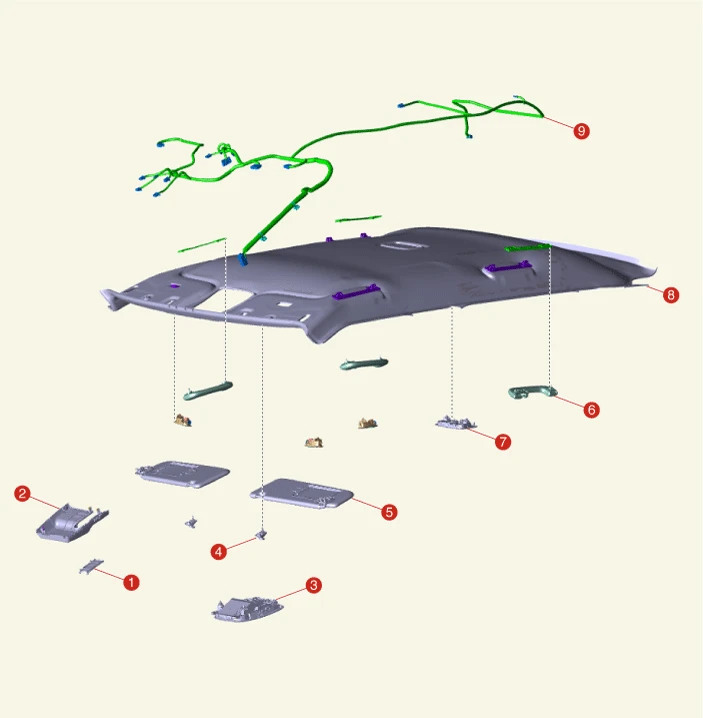

[Non-Sunroof Type]

Kia EV6. Components and Components Location

1. Multi-Sensor Blanking Cover
2. Multi-Sensor Cover
3. Overhead Console Lamp
4. Sunvisor Retainer
5. Sunvisor
6. Assist Handle Guide
7. Room Lamp
8. Roof Trim Assembly
9. Roof Trim Harness
