Kia EV6: Troubleshooting

Troubleshooting

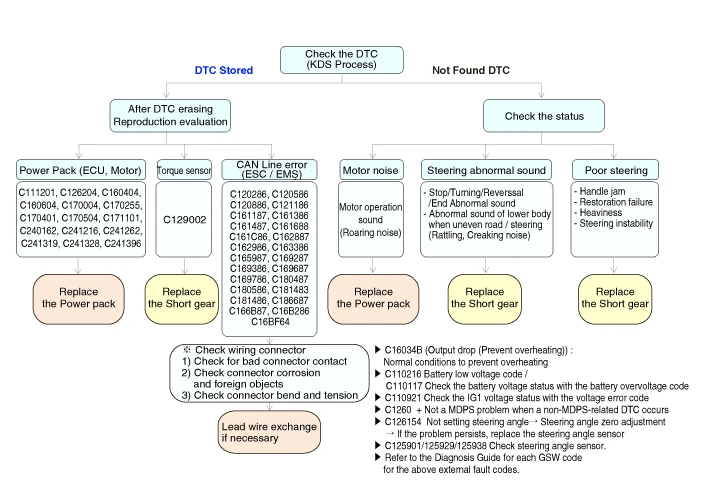

Warning Lamp Diagnostic Guide

Kia EV6. Troubleshooting

Inspection Items per DTC code

NO DTC Cause of DTC code Items to check
1 C110117 High battery voltage 1. Alternator
2. Battery
3. MDPS ECU
2 C110216 Low battery voltage 1. Alternator
2. Battery
3. MDPS ECU
3 C110921 IG1 voltage error 1. Alternator
2. IGN Line
3. MDPS ECU
4 C111201 Torque sensor supply voltage error 1. MDPS ECU
5 C120286 Wheel speed sensor error 1. CAN Line
C120586 2. MDPS ECU
C120886 3. Wheel sensor line
C121186
6 C125901 Steering angle sensor error 1. MDPS ECU
C125929
C125938
7 C126154 Steering Angle Sensor (SAS) Calibration error 1. Reset Steering Angle Sensor (SAS) Calibration
2. Battery
8 C126204 Temperature sensor error 1. Temperature sensor
(MDPS ECU)
9 C129002 Torque sensor main signal error 1. Main torque sensor
2. Torque sensor connector
10 C16034B Output drop (Prevent overheating) 1. MDPS ECU
11 C160404 ECU hardware error 1. MDPS ECU
12 C160604 MDPS ECU software error 1. MDPS ECU
13 C161187 VCU CAN response delay 1. Vehicle Control Unit (VCU) CAN Line
2. CAN Line
14 C161386 VCU CAN signal error 1. Vehicle Control Unit (VCU) CAN Line
2. CAN Line
15 C161487 HCU CAN response delay 1. Vehicle Control Unit (VCU) CAN Line
2. CAN Line
16 C161688 CAN BUS error 1. CAN Line
17 C161C86 HCU CAN signal error 1. Vehicle Control Unit (VCU) CAN Line
2. CAN Line
18 C161F86 Vehicle speed signal error 1. CAN Line
2. MDPS ECU
3. Wheel sensor
19 C162887 CLU CAN response delay 1. CAN Line
2. MDPS ECU
3. Cluster
20 C162986 CLU CAN signal error 1. CAN Line
2. MDPS ECU
3. Cluster
21 C163386 CLU CAN signal error 1. CAN Line
2. MDPS ECU
3. Cluster
22 C165987 No CAN SAS signal input 1. SAS Transmission UNIT
2. CAN Line
23 C169287 No VSM CAN signal input 1. CAN Line
2. MDPS ECU
3. BCM (IPM)
24 C169386 VSM CAN signal error 1. CAN Line
2. MDPS ECU
3. BCM (IPM)
25 C169687 No PA CAN signal input 1. CAN Line
2. MDPS ECU
3. SPAS ECU
26 C169786 PA CAN signal error 1. CAN Line
2. MDPS ECU
3. SPAS ECU
27 C170004 Specification recognition not applicable(BYTE) 1. MDPS ECU
28 C170255 Specification recognition not applicable(Variant) 1. Select regional specifications
29 C170401 VCU relay error 1. MDPS ECU
30 C170504 ESC Module pre-charge circuit error 1. Motor relay
2. MDPS ECU
31 C171101 Abnormal power OFF accumulation 1. Alternator
2. Battery
3. MDPS ECU
32 C180487 No LKAS signal input 1. CAN Line
2. MDPS ECU
3. LKAS ECU
33 C180586 LKAS signal error 1. CAN Line
2. MDPS ECU
3. LKAS ECU
34 C181483 CAN SAS signal error 1. SAS Transmission UNIT
C181486 2. CAN Line
35 C240162 Motor circuit error 1. Motor position sensor
2. Motor connector
36 C241216 Mortor short circuit and disconnection 1. Motor
C241262 2. Motor sensor connector
37 C186687 ICSC CAN not received 1. ICSC
38 C166B87 Wheel speed sensor signal not received 1. Wheel speed sensor
2. CAN Line
39 C16B286 Wheel speed sensor signal error 1. Wheel speed sensor
2. CAN Line
40 C16BF64 Vehicle wheel speed monitoring error 1. Wheel speed sensor
2. CAN Line
41 C241319 Motor current error 1. Motor current sensor
C241328
C241396

Kia EV6. Troubleshooting

If the MDPS warning light does not illuminate, the following symptoms are normal :

• Immediately after starting the engine, there is no temporary auxiliary steering force during the MDPS system self-diagnosis time (about 2 seconds), but this is not a malfunction.

• Noise due to relay connection on engine On or Off, but this is normal operating sound.

• Noise due to motor rotation during steering or low-speed driving, but this is normal operating sound.

Cautions to be taken when handling the MDPS (Motor Driven Power Steering)

1.Failure occurs due to internal damage because of the drop of and shock and excessive external force on the new partial component.→ Be cautious of shock on the partial component and replace the damaged part (due to drop, etc.) with a new one.

2.When fastening the steering wheel, excessive impact may result in twisting the center point of the torque sensor.

3.When removing/installing the connector the wiring may be damaged (deformed) by excessive external force.

4.Be cautious when storing and replacing the partial components under the abnormal temperature and humidity conditions.
