Kia EV6: Universal joint assembly

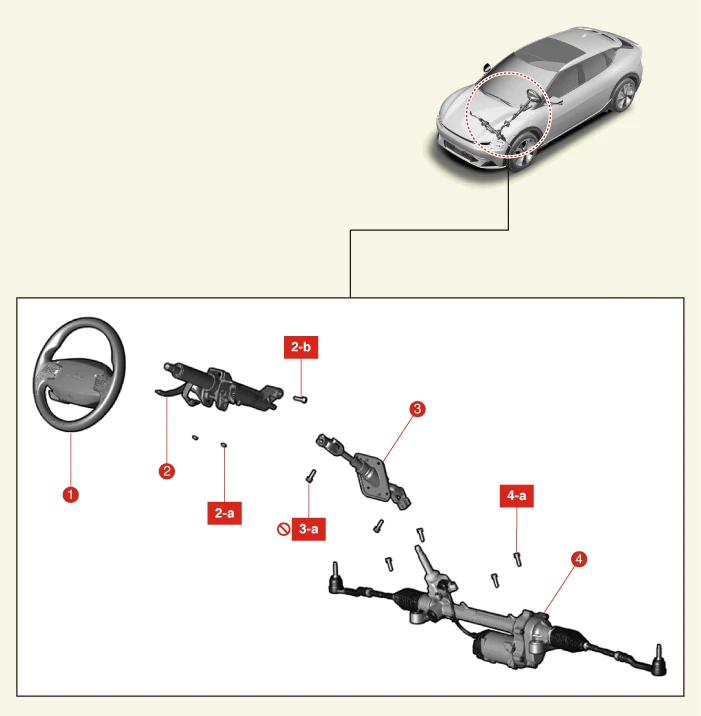

Component

Kia EV6. Universal joint assembly

1. Steering Wheel
2. Steering Column Assembly
2-a. 24.5 - 29.4 N·m (2.5 - 3.0 kgf·m, 18.1 - 21.7 lb·ft)
2-b. 53.9 - 58.8 N·m (5.5 - 6.0 kgf·m, 39.8 - 43.4 lb·ft)
3. Universal Joint
3-a. 49 - 58.8 N·m (5.0 - 6.0 kgf·m, 36.2 - 43.4 lb·ft)
4. Steering Gear Box
4-a. 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94 lb·ft)


Removal

1.Align the steering wheel straight.

2.Turn the IG to 'OFF'.

3.Secure the steering wheel to prevent movement.

Kia EV6. Universal joint assembly

Changing the clockspring neutral position by rotating the steering wheel with the steering column universal joint removed may result in open circuit and faulty folding of the cable inside the clockspring after installation.

4.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel")

5.Separate the steering universal joint from the steering gear box.

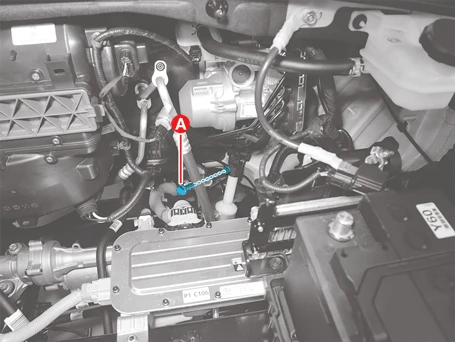

(1)Remove the steering universal joint bolt (A).

Tightening torque :49.0 - 58.8 N·m (5.0 - 6.0 kgf·m, 36.2 - 43.4 lb·ft)

Kia EV6. Universal joint assembly

Kia EV6. Universal joint assembly

Do not reuse the steering universal joint bolt.

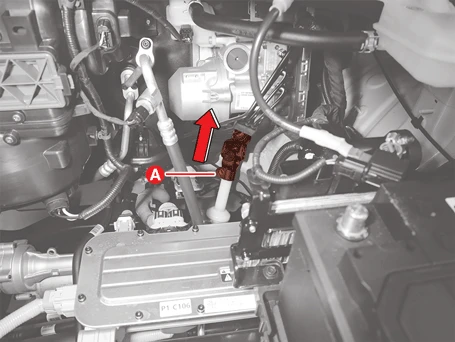

(2)Separate the steering universal joint (A) in the direction of the arrow.

Kia EV6. Universal joint assembly

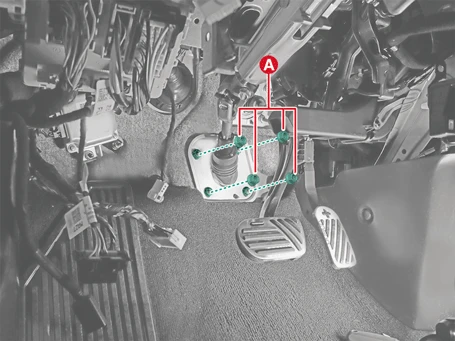

6.Remove the steering column assembly dust cover nuts (A).

Tightening torque :12.7 - 17.7 N·m (1.3 - 1.8 kgf·m, 9.4 - 13 lb·ft)

Kia EV6. Universal joint assembly

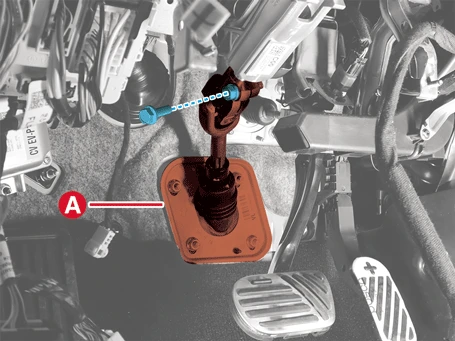

7.Remove the universal joint (A) after removing the bolt.

Tightening torque :49.0 - 58.8 N·m (5.0 - 6.0 kgf·m, 36.2 - 43.4 lb·ft)

Kia EV6. Universal joint assembly

Installation

1.Install in the reverse order of removal.

Kia EV6. Universal joint assembly

• Insert the universal joint assembly securely into the steering gearbox pinion shaft.

• Make sure that the head of the universal joint mounting bolt is mounted facing the driver.

2.Perform the Steering Angle Sensor (SAS) Calibration.(Refer to Motor Power Steering System - "Adjustment")
