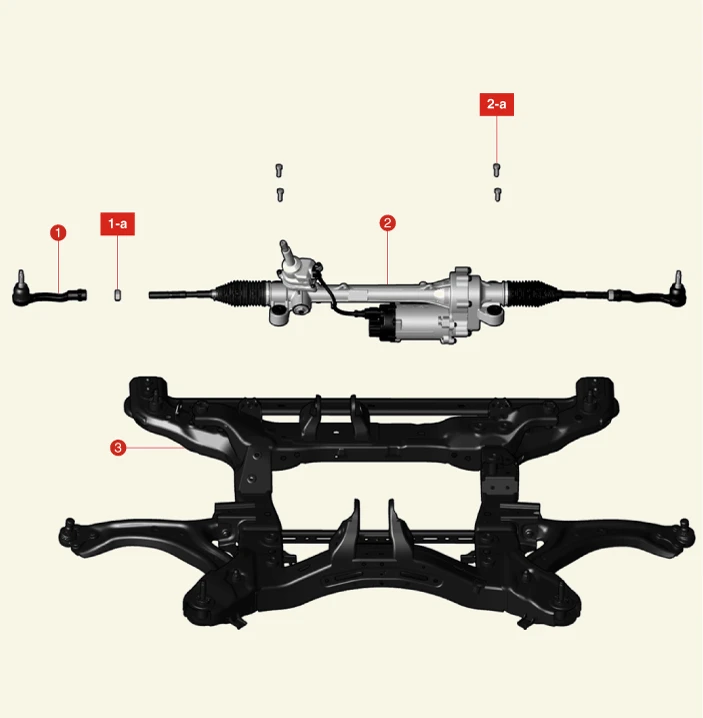

Component

1. Tie Rod End
1-a. 49.0 - 53.9 N·m (5.0 - 5.5 kgf·m, 36.2 - 39.8 lb·ft)
2. Steering Gear Box
2-a. 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94 lb·ft)

3. Front Sub Frame

Removal



• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.

• When working on high voltage system or related system, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.

1.Remove the front sub frame.(Refer to Suspension System - "Front Sub Frame")

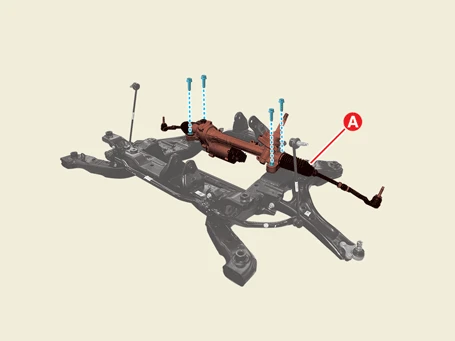

2.Remove the steering gear box (A) after removing the bolts.

Tightening torque :107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)



When installing the steering gear box, pre-tighten all bolts and tighten to the specified torque.

Installation

1.Install in the reverse order of removal.



When installing, install the bolts on the bushing side first and install the remaining nuts.

2.Perform the EPS type recognition and Steering Angle Sensor (SAS) calibration.(Refer to Motor Power Steering System - "Adjustment")

3.Check the alignment.(Refer to Suspension System - "Alignment")

Removal



• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.

• When working on high voltage system or related system, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.

1.Remove the front motor and reduction gear assembly.(Refer to Front Motor and Reduction Gear System - "Front Motor and Reduction Gear Assembly")

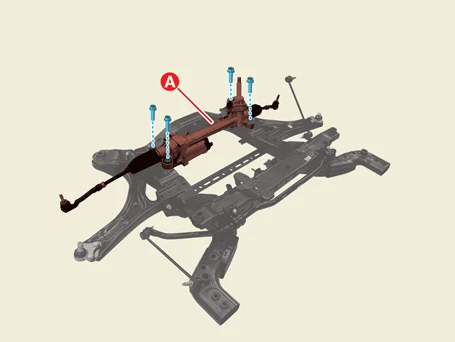

2.Remove the steering gear box (A) after removing the bolts.

Tightening torque :107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)



When installing the steering gear box, pre-tighten all bolts and tighten to the specified torque.

Installation

1.Install in the reverse order of removal.



When installing, install the bolts on the bushing side first and install the remaining nuts.

2.Perform the EPS type recognition and Steering Angle Sensor (SAS) calibration.(Refer to Motor Power Steering System - "Adjustment")

3.Check the alignment.(Refer to Alignment - "Repair Procedures")
