Removal

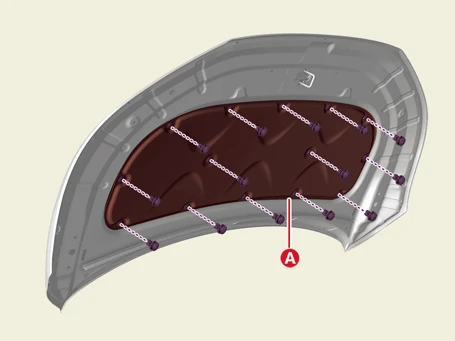

1.Remove the hood insulator pad (A) after removing the fasteners.
Installation
1.Install in the reverse order of removal.
