Kia EV6: Hood Assembly

Removal

Kia EV6. Hood Assembly

Removing or installing the hood requires an assistant.

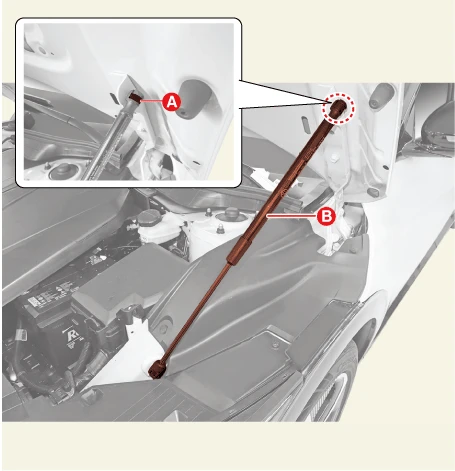

1.Remove the hood lifter (B) after removing the clip (A).

Kia EV6. Hood Assembly

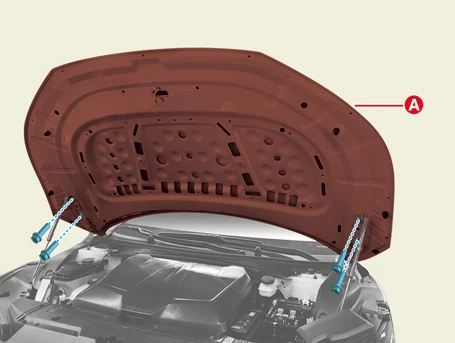

2.Remove the hood assembly (A) after removing the hood hinge bolts.

Tightening torque :18.6 - 24.5 N·m (1.9 - 2.5 kgf·m, 13.7 - 18.1 lb·ft)

Kia EV6. Hood Assembly

Installation

1.Install in the reverse order of removal.

Kia EV6. Hood Assembly

• Make sure that the hood locks / unlocks and opens / closes properly.

• Adjust the hood alignment if necessary.
