Kia EV6: Hood Lifter

Removal

Kia EV6. Hood Lifter

Removing or installing the hood lifter requires an assistant.

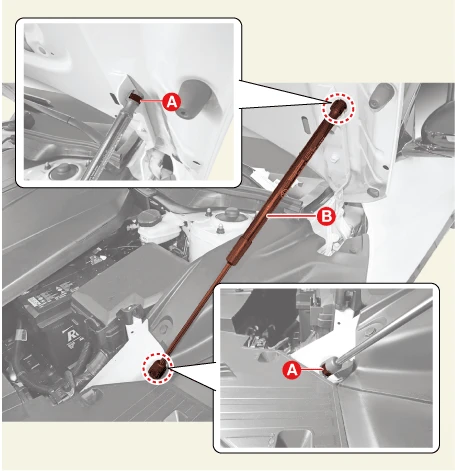

1.Remove the hood lifter (B) after removing the clips (A).

Kia EV6. Hood Lifter

Installation

1.Install in the reverse order of removal.

Kia EV6. Hood Lifter

• Make sure that the hood locks / unlocks and opens / closes properly.

• Adjust the hood alignment if necessary.
