Kia EV6: Crash Pad Side Cover

Removal

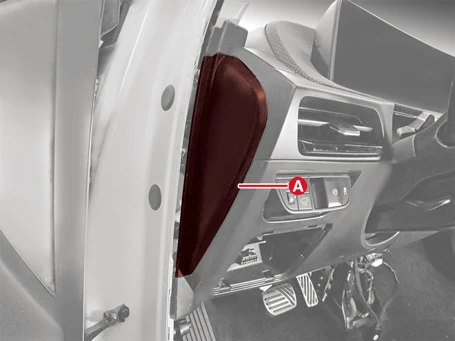

1.Remove the crash pad side cover (A).[LH]

Kia EV6. Crash Pad Side Cover

Kia EV6. Crash Pad Side Cover

Kia EV6. Crash Pad Side Cover

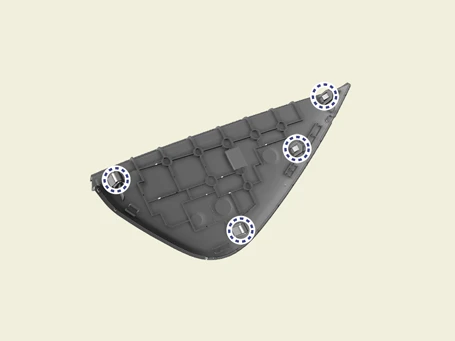

Clip position :

Kia EV6. Crash Pad Side Cover

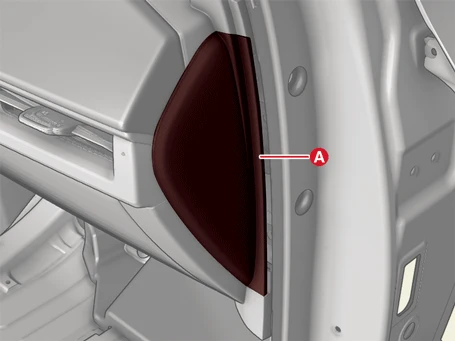

[RH]

Kia EV6. Crash Pad Side Cover

Kia EV6. Crash Pad Side Cover

Kia EV6. Crash Pad Side Cover

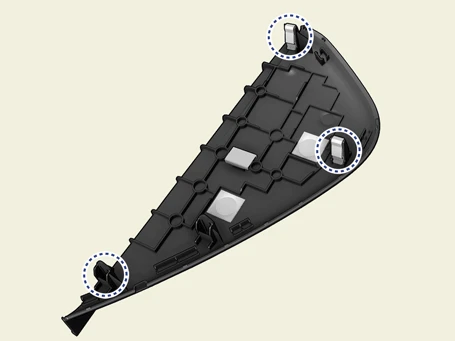

Clip position :

Kia EV6. Crash Pad Side Cover

Installation

1.Install in the reverse order of removal.
