Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
Crash Pad Lower Panel
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")
2.Remove the crash pad side cover [LH].(Refer to Crash Pad - "Crash Pad Side Cover")

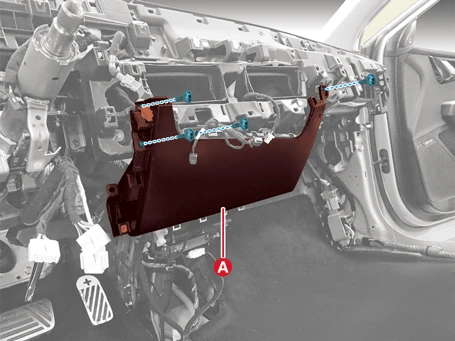

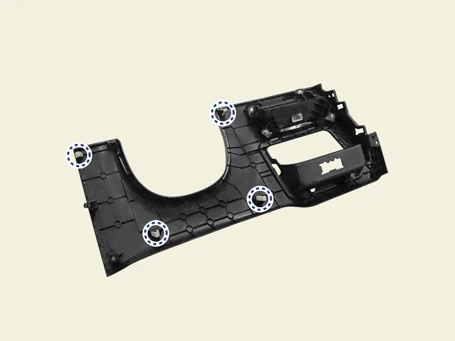

3.Remove the crash pad lower panel (A) after removing the screws.

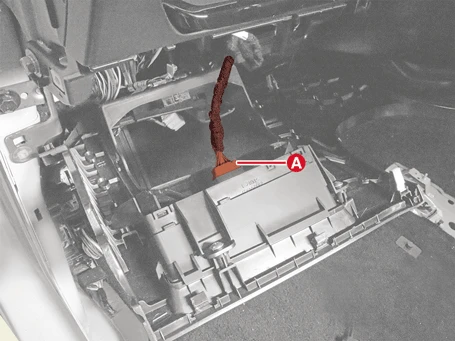

4.Disconnect the crash pad side switch connector (A).

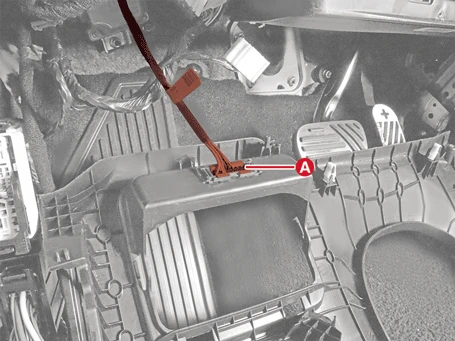

5.Disconnect the diagnostic connector (A).
Crash Pad Center Panel
1.Remove the crash pad lower panel.
2.Remove the glove box housing.(Refer to Crash Pad - "Glove Box")

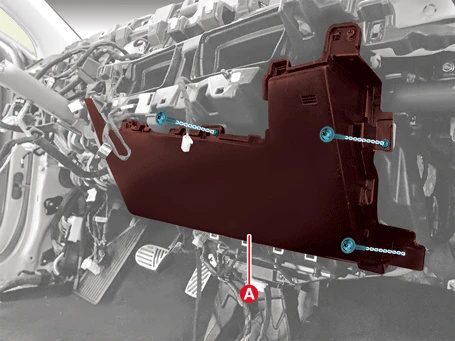

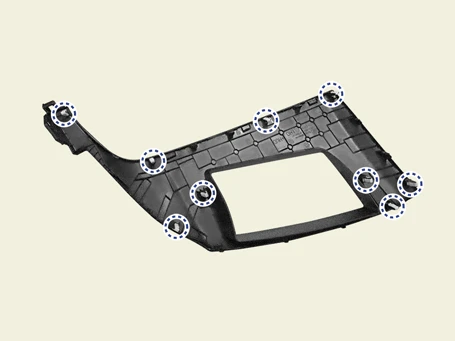

3. Remove the crash pad center panel (A) after removing the screws.
Crash Pad Upper Panel
1.Remove the cluster.(Refer to Body Electrical System - "Cluster")

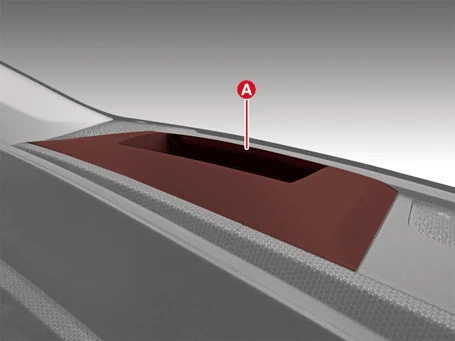

2.Remove the head up display cover (A) after removing the screw.

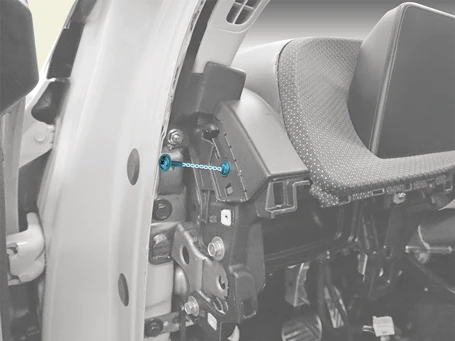

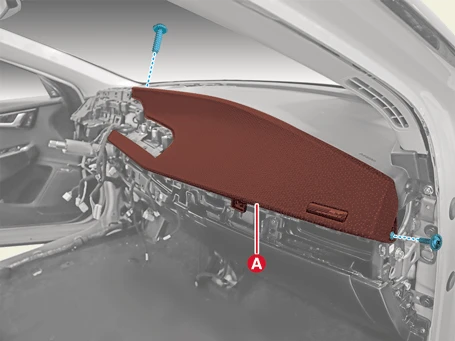

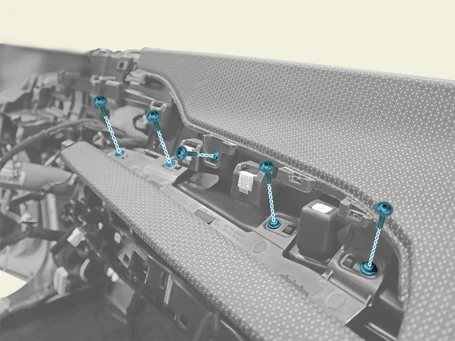

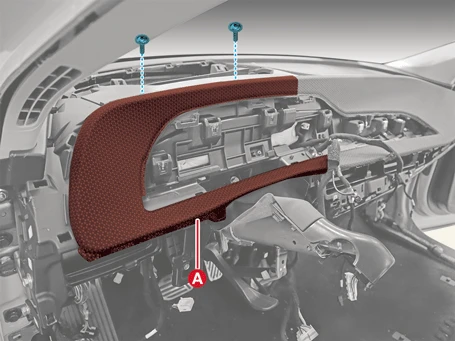

3.Remove the crash pad upper panel (A) after removing the screws.[LH]
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
