Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Remove the crash pad center panel.(Refer to Crash Pad - "Crash Pad Panel")
2.Remove the front center speaker.(Refer to Body Electrical System - "Speaker")
3.Remove the multifunction switch.(Refer to Body Electrical System - "Multifunction Switch")
4.Remove the Particulate Matter (PM) sensor.(Refer to Heating, Ventilation And Air Conditioning - "PM Sensor")

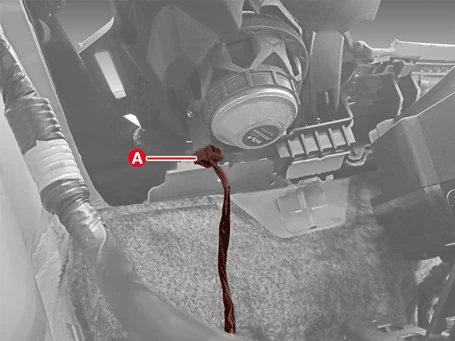

5.Disconnect the duct sensor connector (A).

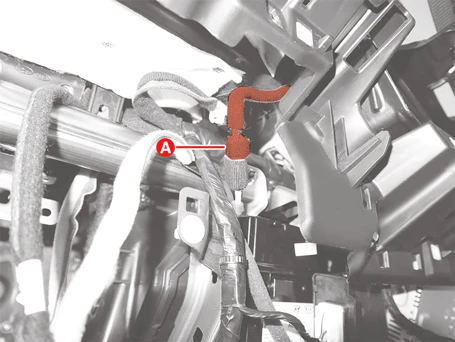

6.Disconnect the crash pad antenna connector (A).
Tightening torque: 3.9 - 5.9 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft, 34.7 - 52.1 lb·in)

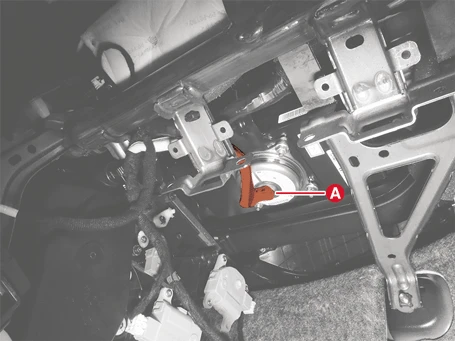

7.Disconnect the front midrange speaker connector (A).

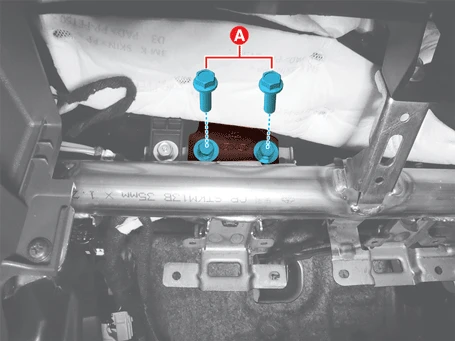

8.Remove the passenger airbag bolts (A).
Tightening torque : 3.9 - 5.9 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft, 34.7 - 52.1 lb·in)

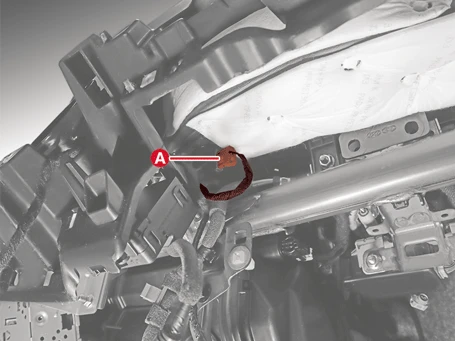

9.Disconnect the passenger airbag connector (A).

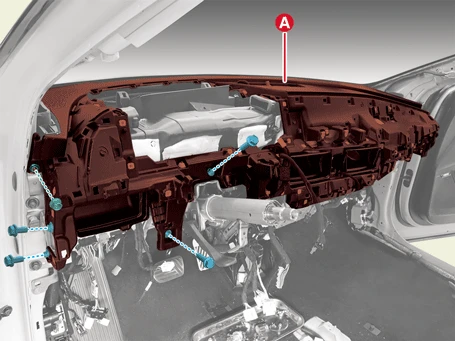

10.Remove the main crash pad assembly (A) after removing the bolts and nuts.
Tightening torque :17.7 - 23.5 N·m (1.8 - 2.4 kgf·m, 13.0 - 17.4 lb·ft)
[LH]
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
