Removal

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Glove Box

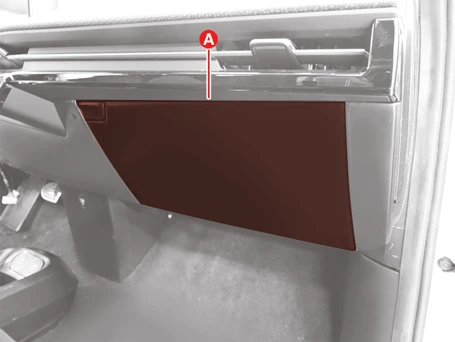

1.Open the glove box (A).

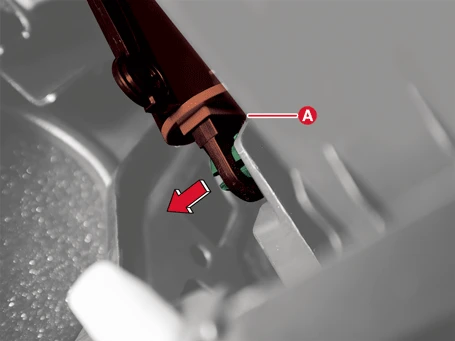

2.Separate the glove box air damper (A) in the direction of the arrow.

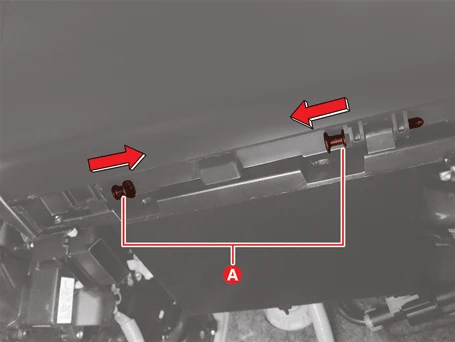

3.Remove glove box knob (A) after pulling it in the direction of the arrow.

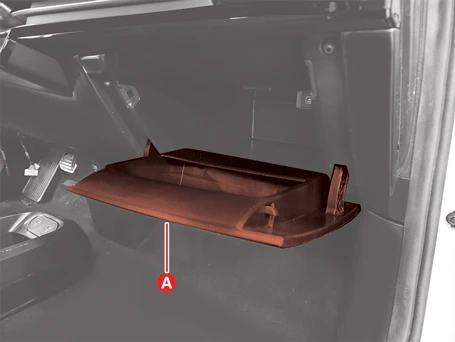

4.Remove the glove box (A) by pulling downward.

Glove Box Housing

1.Remove the center air vent duct assembly.(Refer to Crash Pad - "Crash Pad Air Vent")

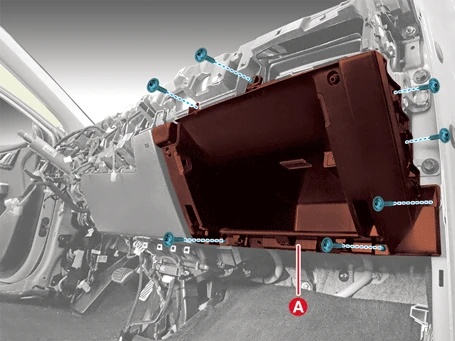

2.Remove the glove box housing (A) after removing the screws.

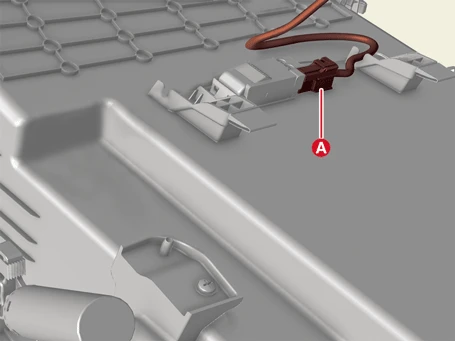

3.Disconnect the glove box lamp connector (A).

Installation

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
