Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Remove the main crash pad assembly.(Refer to Crash Pad - "Main Crash Pad Assembly")
2.Remove the knee airbag (KAB).(Refer to Restraint - "Knee Airbag (KAB) Module")
3.Remove the heater control unit.(Refer to Heating, Ventilation and Air Conditioning - "Heater Control Unit")
4.Loosen the front nuts and through bolts and lower the steering column down.(Refer to Steering System - "MDPS Column and Housing")
5.Remove the wiper motor.(Refer to Body Electrical System - "Wiper Motor")

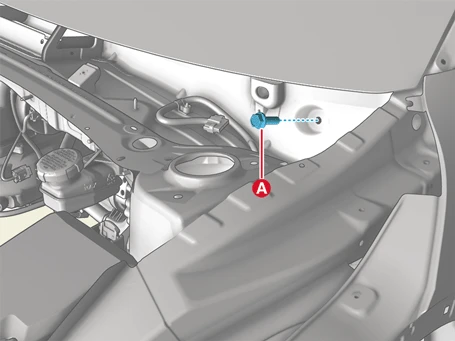

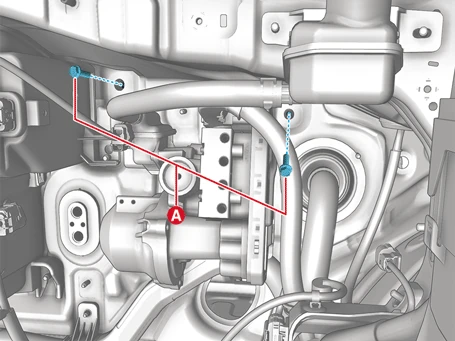

6.Remove the cowl cross bar bolts (A).
Tightening torque :22.6 - 30.4 N·m (2.3 - 3.1 kgf·m, 16.6 - 22.4 lb·ft)
[Front Wiper Motor Part]

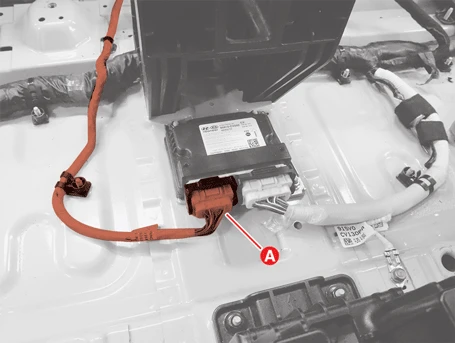

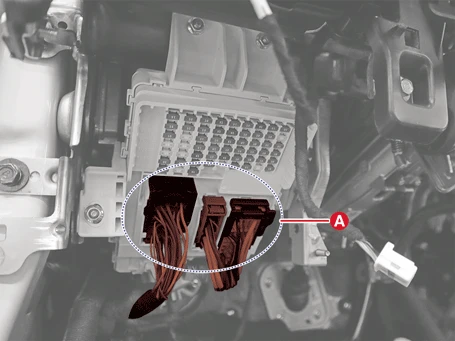

7.Disconnect the airbag system control module connector (A).
8.Disconnect the connectors (A) after removing the clip.[Driver]

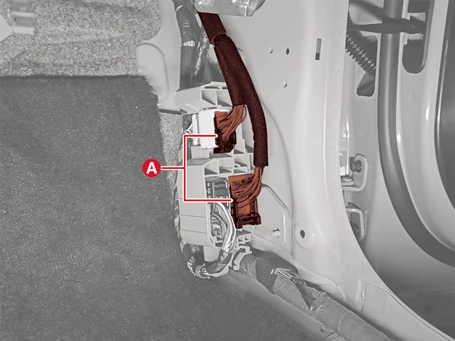

9.Disconnect the connectors (A).

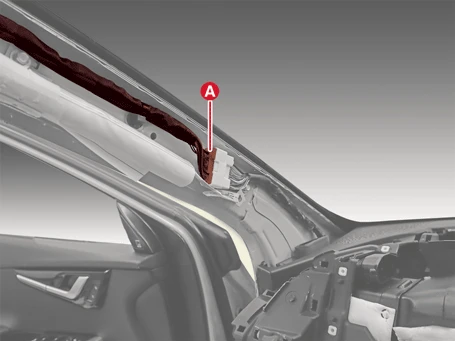

10.Disconnect the connectors (A).[Driver]
11.After pressing the lock pin, remove the clip and disconnect each connector of the heater unit.
[Driver]

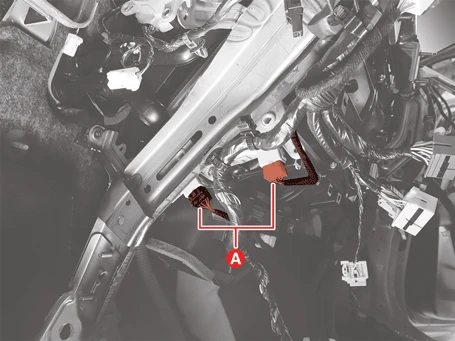

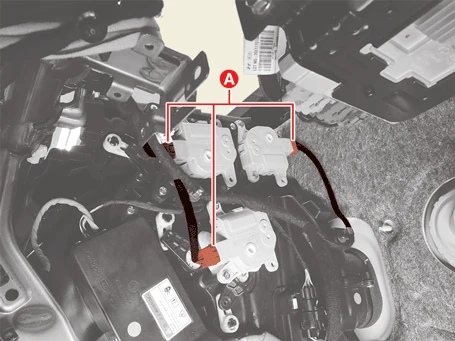

(1)Disconnect the temperature control actuator connector and mode control actuator connector (A).

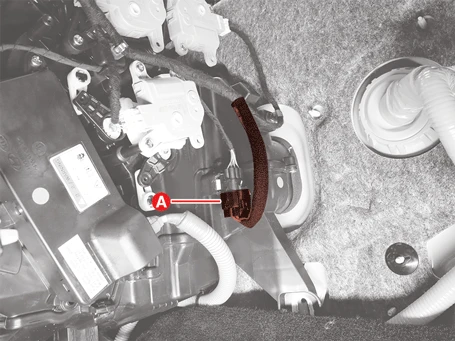

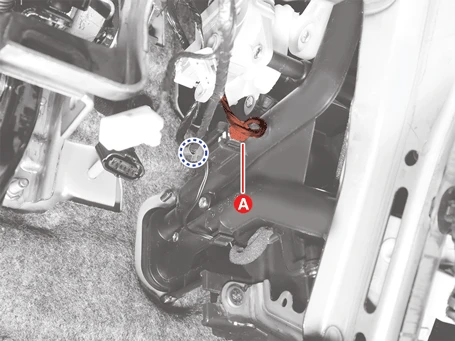

(2)Disconnect the evaporator temperature sensor connector (A) after removing the clip.
(3)Disconnect the rear temperature control actuator connectors (A).

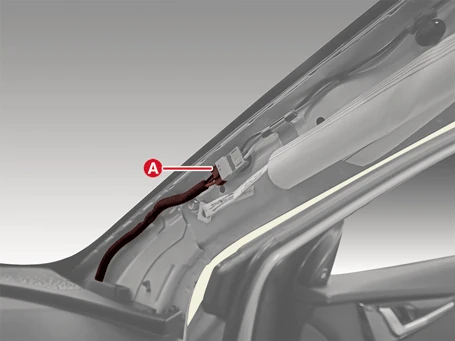

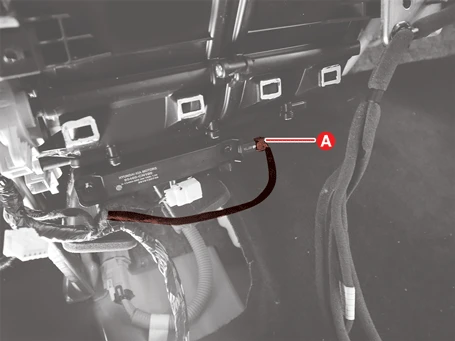

(4)Disconnect the interior antenna connector (A).
[Passenger]

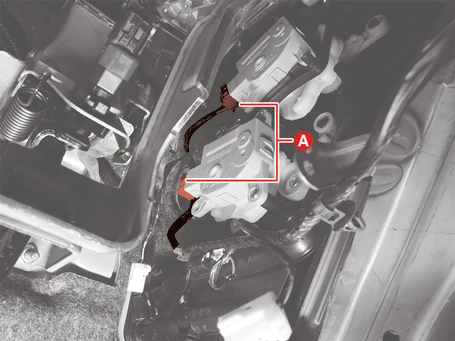

(1)Disconnect the passenger auto defogging actuator, mode control actuator, temperature control actuator connectors (A).
(2)Disconnect the connector (A).
12.Disconnect the shower duct sensor connector (A) after removing the clip.

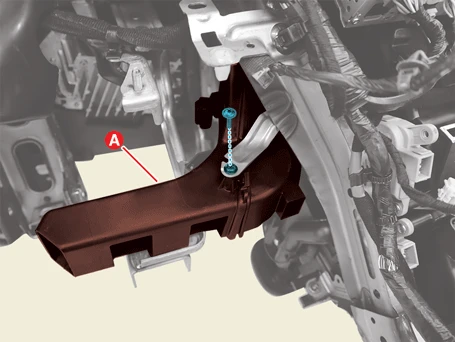

13.Remove the shower duct (A) after removing the screw.

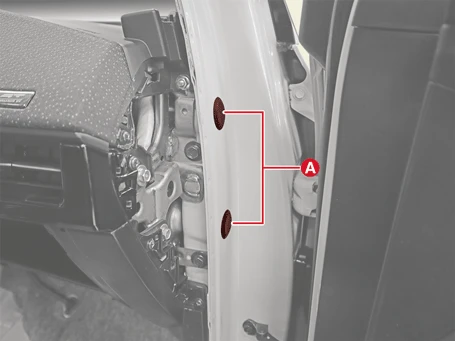

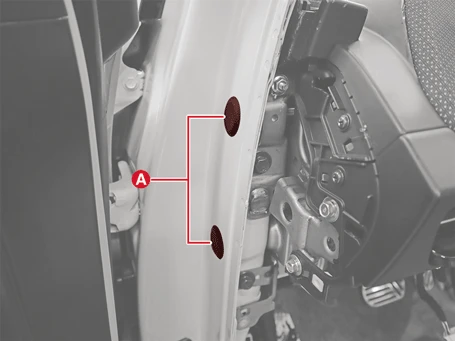

14.Remove the plug holes (A).[LH]

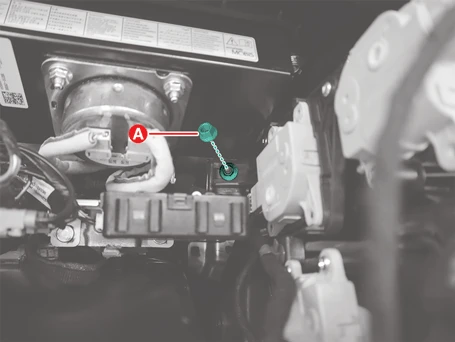

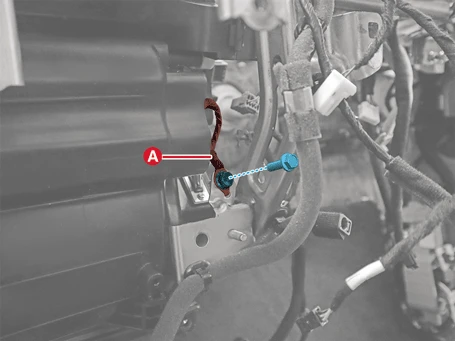

15.Disconnect the PTC heater ground wire (A) after removing the bolts.

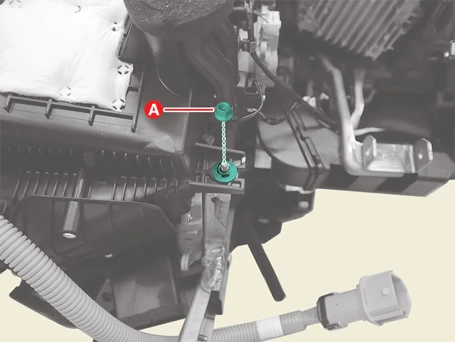

16.Remove the bolts and nuts (A).
Tightening torque :16.7 - 23.5 N·m (1.7 - 2.4 kgf·m, 12.3 - 17.4 lb·ft)
[Behind the cowl cross bar]

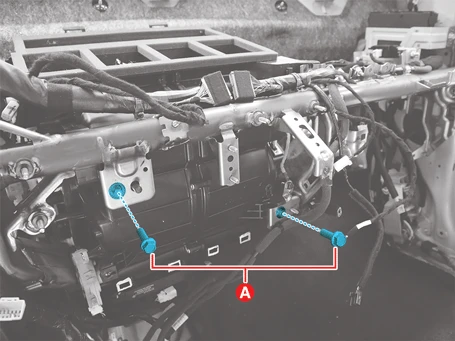

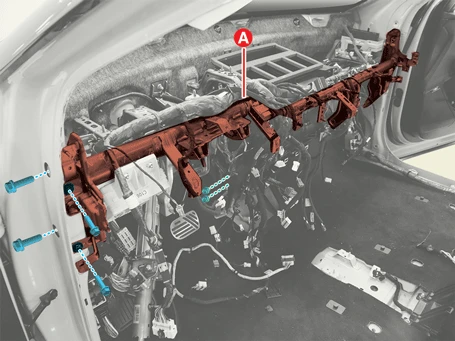

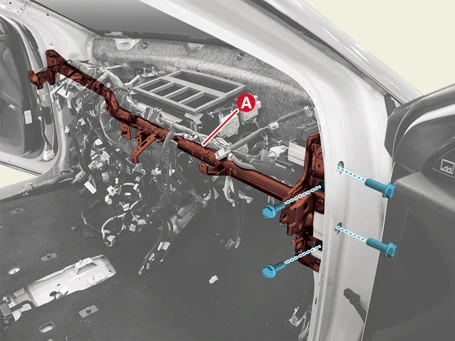

17.Remove the cowl cross bar assembly (A) after removing the bolts and nuts.
Tightening torque :16.7 - 23.5 N·m (1.7 - 2.4 kgf·m, 12.3 - 17.4 lb·ft)
[LH]

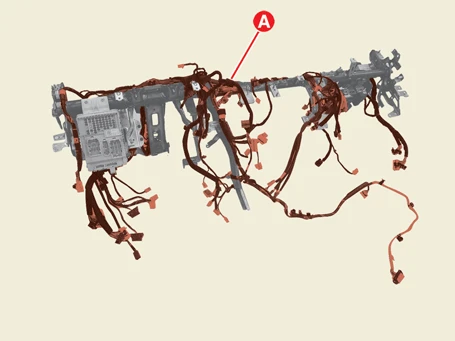

18.Remove the main wiring (A) from the cowl cross bar.
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
