Kia EV6: Components and Components Location

Component

Kia EV6. Components and Components Location

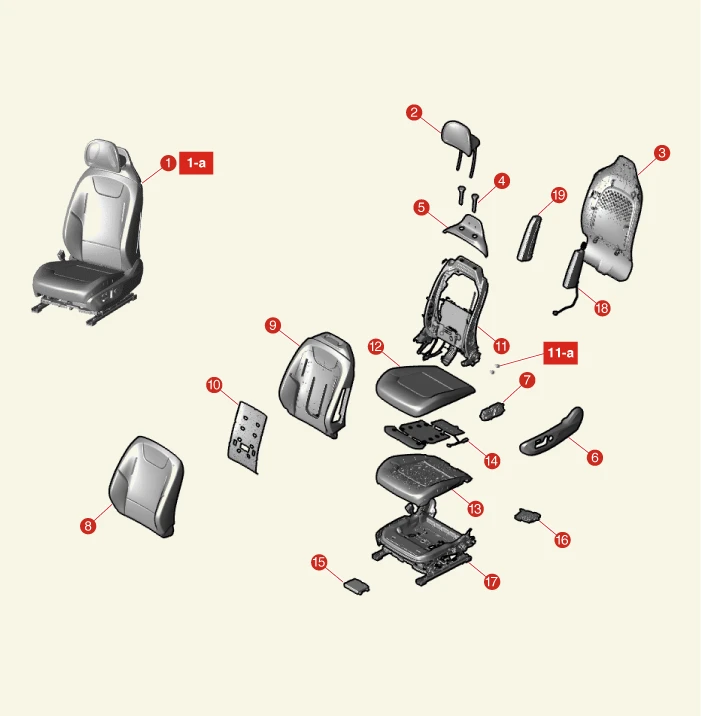

1. Front Seat Assembly
1-a. 44.1 - 58.8 N·m (4.5 - 6.0 kgf·m, 32.5 - 43.4 lb·ft)
2. Headrest
3. Front Seat Back Cover
4. Headrest Guide
5. Backboard Front Cover
6. Front Seat Shield Outer Cover
7. Power Seat Control Switch
8. Front Seat Back Cover
9. Front Seat Back Cushion
10. Front Seat Back Heat Line
11. Front Seat Back Frame
11-a 44.1 - 58.8 N·m (4.5 - 6.0 kgf·m, 32.5 - 43.4 lb·ft)
12. Front Seat Cushion Cover
13. Front Seat Cushion Pad
14. Front Seat Cushion Heater
15. Front Seat Heater ECU
16. Ventilation Blower Unit
17. Front Seat Cushion Frame
18. Front Side Airbag [LH]
19. Front Side Airbag [RH]

Front Seat

...
