Kia EV6: Sunvisor

Removal

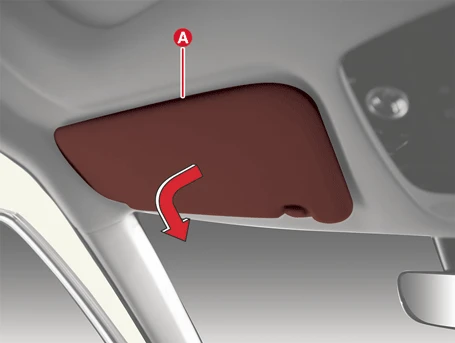

1.Open the sunvisor (A) in the direction of the arrow.

Kia EV6. Sunvisor

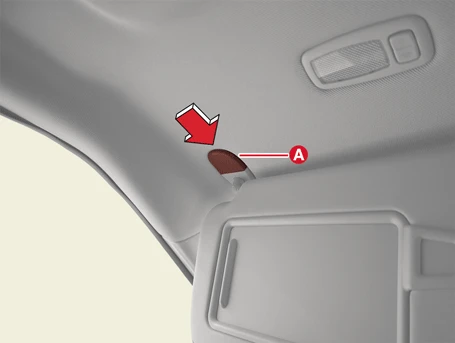

2.Remove the sunvisor cover (A) in the direction of the arrow.

Kia EV6. Sunvisor

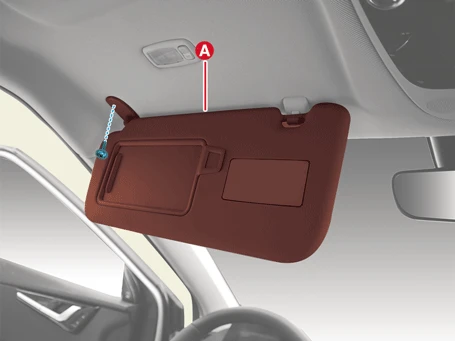

3.Remove the sunvisor (A) after removing the screw.

Kia EV6. Sunvisor

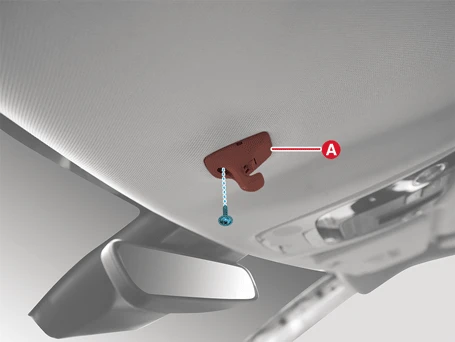

4.Remove the sunvisor retainer (A) after removing the screw.

Kia EV6. Sunvisor

Installation

1.Install in the reverse order of removal.
