Kia EV6: Assist Handle

Removal

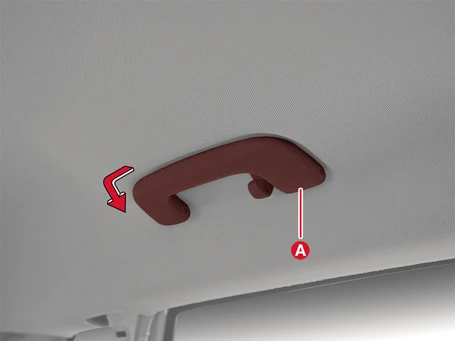

1.Open the assist handle (A) in the direction of the arrow.

Kia EV6. Assist Handle

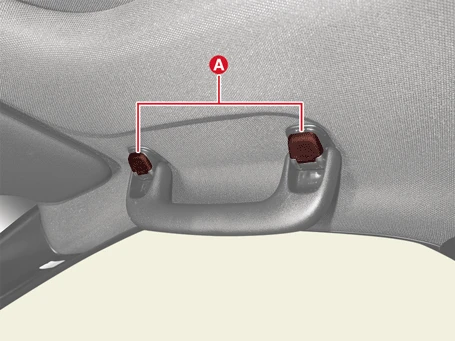

2.Remove the screw caps (A) in the direction of the arrow.

Kia EV6. Assist Handle

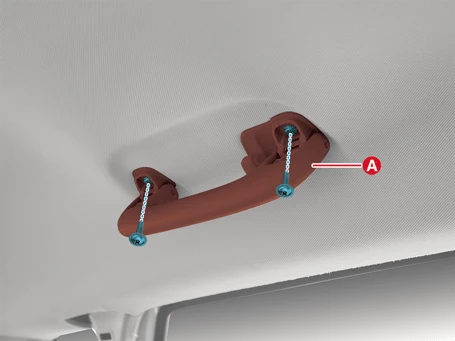

3.Remove the assist handle (A) after removing the screws.

Kia EV6. Assist Handle

Installation

1.Install in the reverse order of removal.
