Kia EV6: Components and Components Location

Component

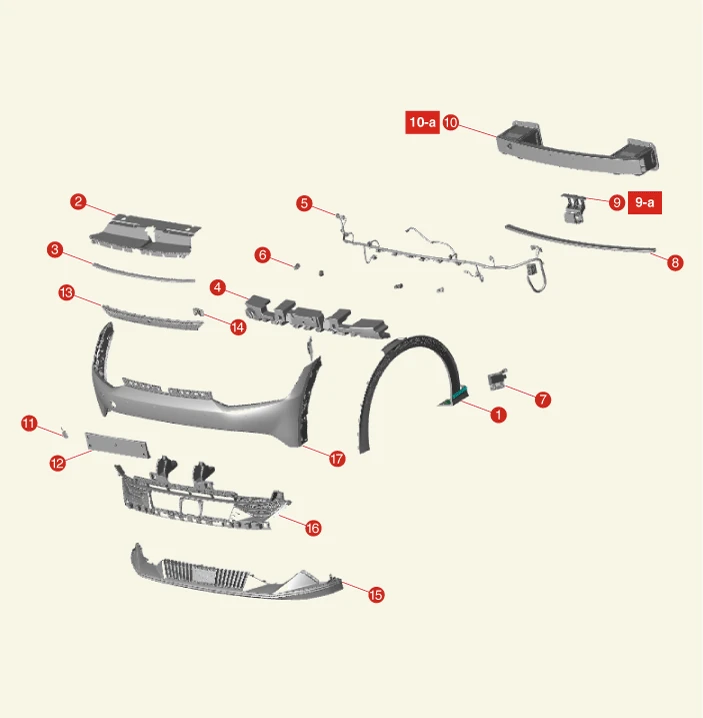

Kia EV6. Components and Components Location

1. Fender Garnish
2. Radiator Grille Upper Cover
3. Front Bumper Sill Strip
4. Front Bumper Energy Absorber
5. Front Bumper Harness
6. Ultrasonic Sensor (PDW-F)
7. Front Corner Radar
8. Front Bumper Lower Stipner
9. Front Radar
9-a. 8.8 - 10.8 N·m (0.9 - 1.1 kgf·m, 6.5 - 8 lb·ft)
10. Front Bumper Beam Assembly
10-a. 22.6 - 26.5 N·m (2.3 - 2.7 kgf·m, 16.6 - 19.5 lb·ft)
11. Towing Hook Cap
12. Front Lisence Plate Molding
13. Radiator Grille
14. Front View Camera
15. Front Bumper Lower Cover
16. Front Bumper Grille
17. Front Bumper Upper Cover

Front Bumper

...
