Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")
2.Remove the rear combination lamps.(Refer to Body Electrical System - "Rear Combination Lamp")
3.Remove the rear quarter garnish.(Refer to Body Side Molding - "Quarter Garnish")

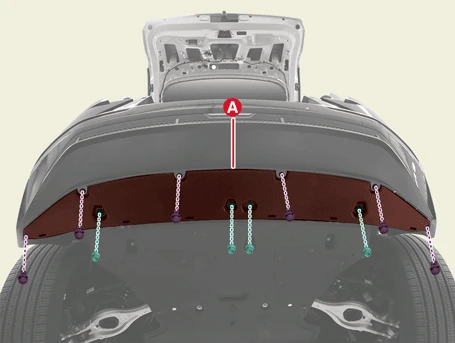

4.Remove the rear bumper under cover (A) after removing the nuts and fasteners.

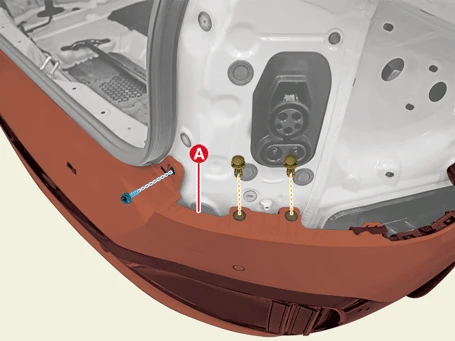

5.Remove the rear bumper (A) screw and fasteners.
[Left]
[Right]

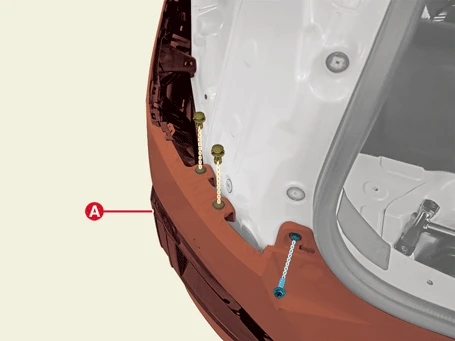

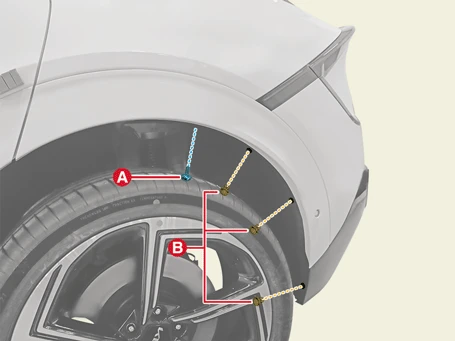

6.Remove the screws (A) and fasteners (B) from the rear wheel guard and the rear bumper.

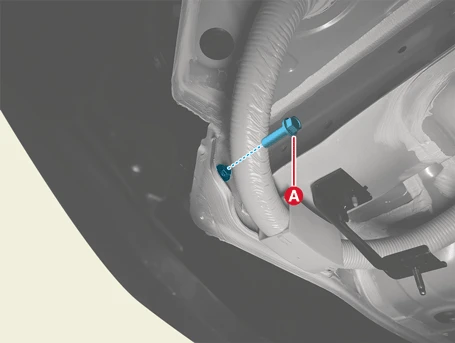

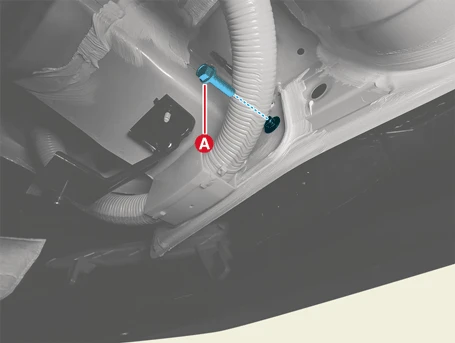

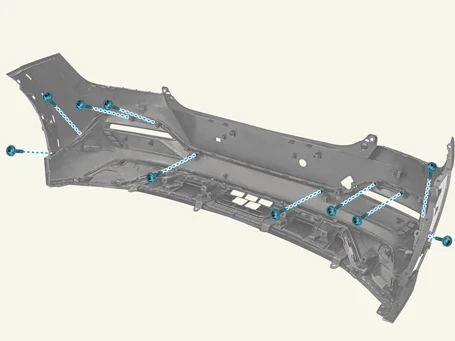

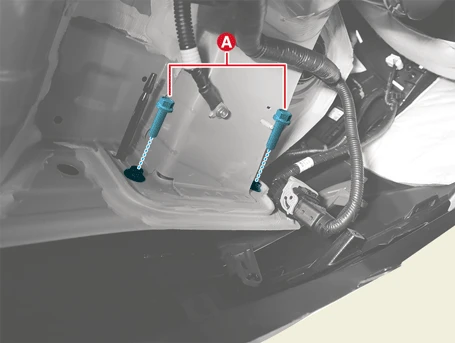

7.Remove the bolts (A) from the inside of the rear bumper.
[Left]
[Right]

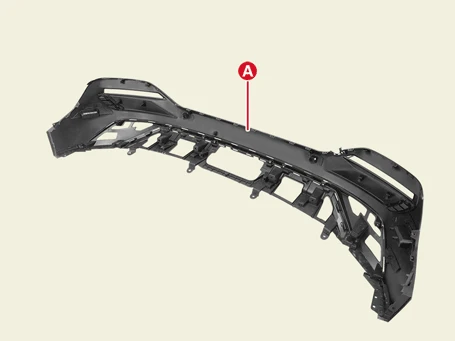

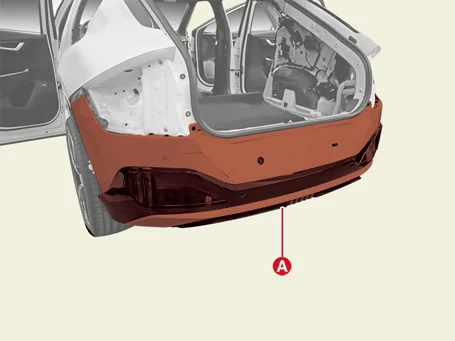

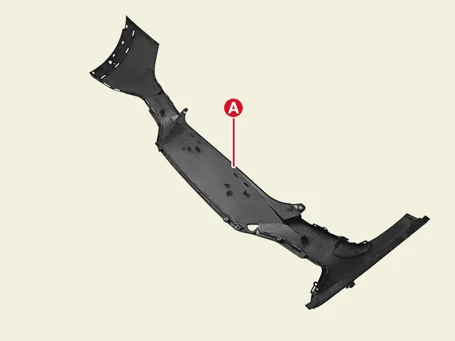

8.Remove the rear bumper assembly (A) after separating the rear bumper from the side.

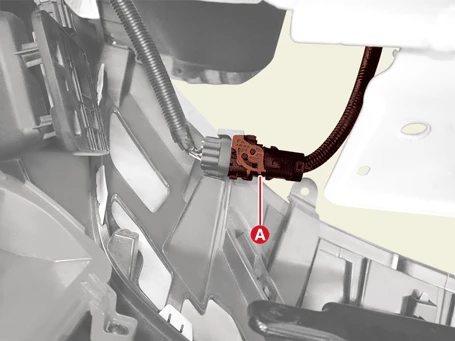

9.Remove the rear bumper main connector (A).
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
Rear Corner Radar Type
• Use only genuine parts to repair the rear bumper where the rear corner radar is located.
• Do not apply license plate molding or foreign objects such as a bumper sticker or a bumper guard near the radar sensor. Doing so may adversely affect the sensing performance of the radar.
• The system may not work properly if paint repair is performed near the rear corner radar. Be careful not to use a Polyester putty which has iron content.
• The system may not work properly if the rear corner radar is covered with foreign matters, such as snow, rain or dirt, etc.
• The system may not work properly if the bumper around the rear corner radar is impacted, damaged or the radar is out of position.
• Check if the radar and bracket are damaged after the bumper around the rear corner radar is impacted.(There must be no mechanical damage near the rear corner radar)
Disassembly
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Remove the rear bumper beam assembly.(Refer to Rear Bumper - "Rear Bumper Beam Assembly")

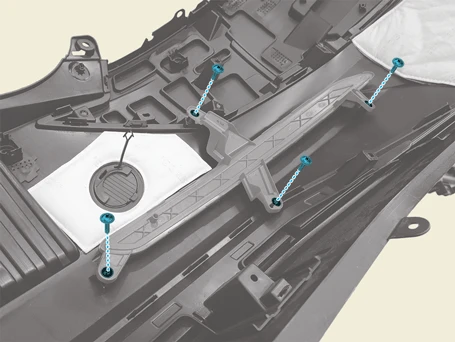

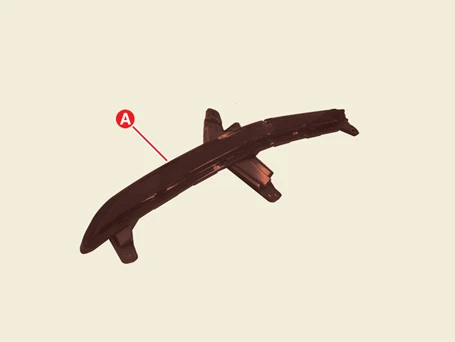

2.Remove the rear bumper reflector (A) after removing the screws.

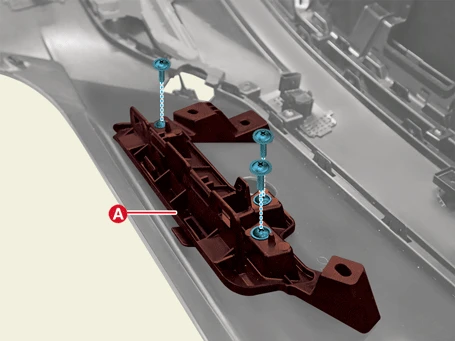

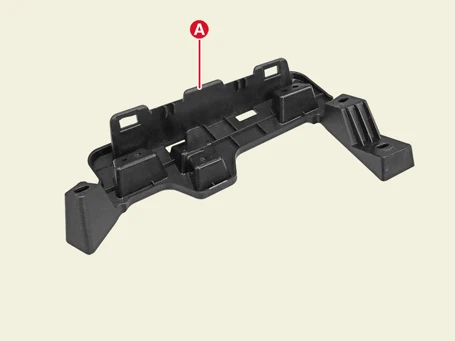

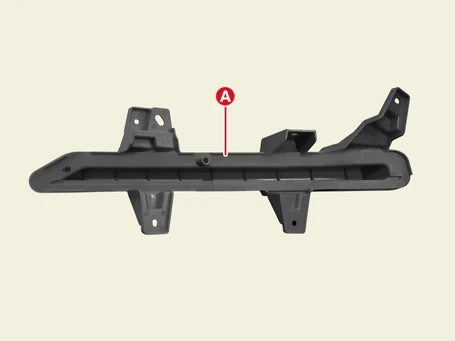

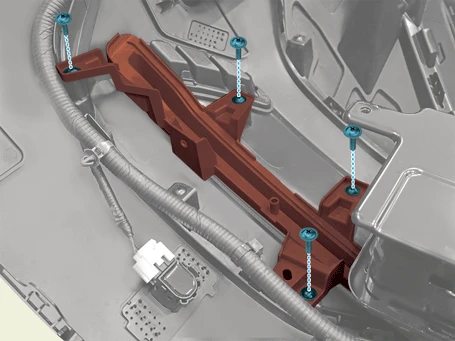

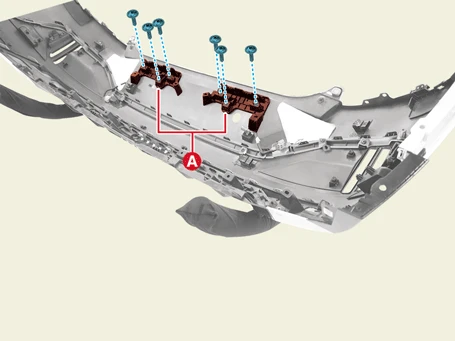

3.Remove the rear bumper side upper bracket (A) after removing the screws.

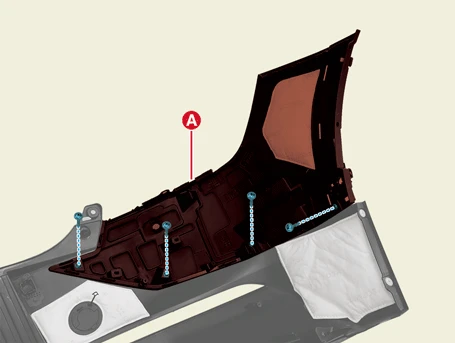

4.Remove the rear bumper side cover (A) after removing the screws.

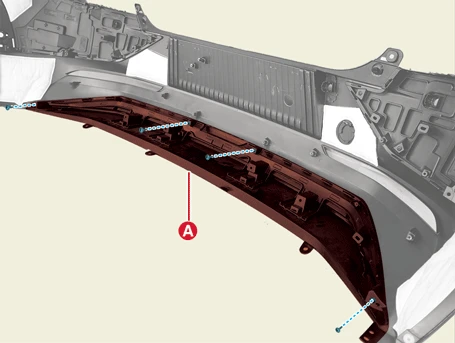

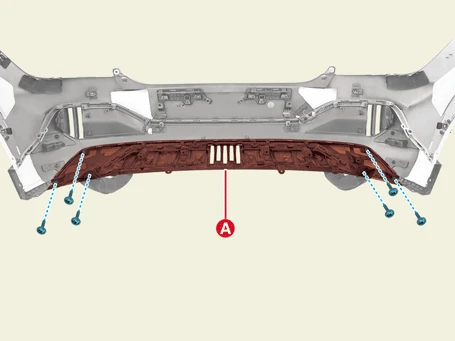

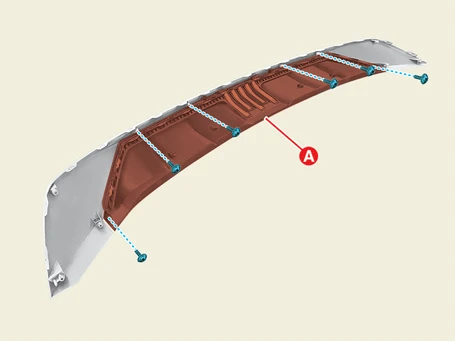

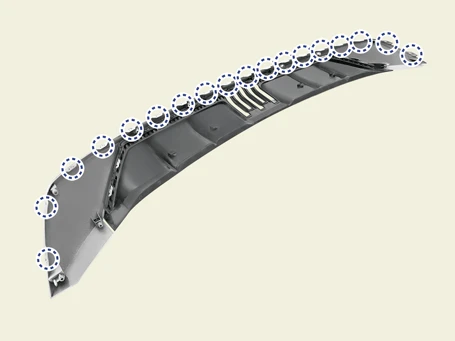

5.Remove the rear bumper skid plate (A) after removing the screws.
Reassembly
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
Disassembly
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
[Option A]

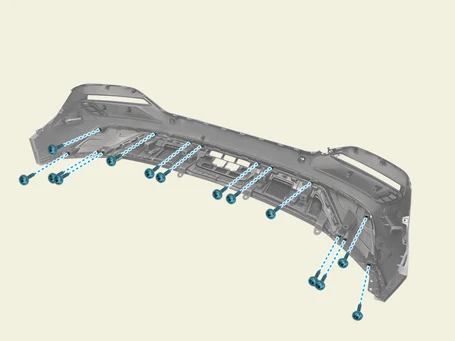

1.Remove the rear bumper beam assembly.(Refer to Rear Bumper - "Rear Bumper Beam Assembly")
2.Remove the rear bumper reflector (A) after removing the screws.

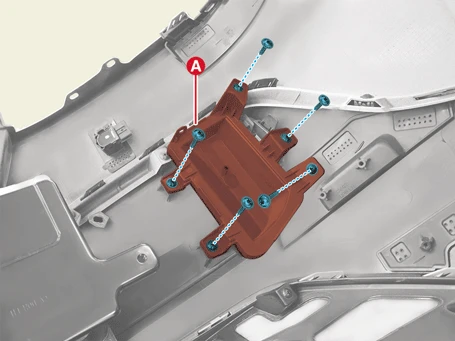

3.Remove the rear bumper side upper bracket (A) after removing the screws.
4.Remove the rear bumper upper cover (A) after removing the screws.
5.Remove the rear bumper lower cover (A) after removing the screws.
[Option B]
1.Remove the rear bumper beam assembly.(Refer to Rear Bumper - "Rear Bumper Beam Assembly")
2.Remove the rear bumper reflector (A) after removing the screws.

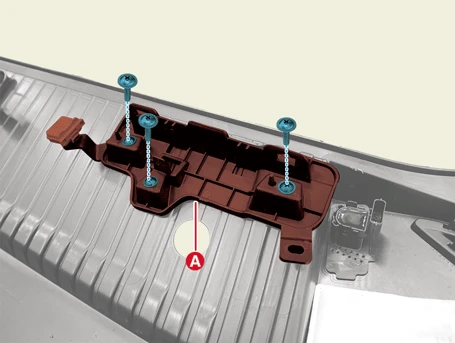

3.Remove the rear bumper side upper bracket (A) after removing the screws.

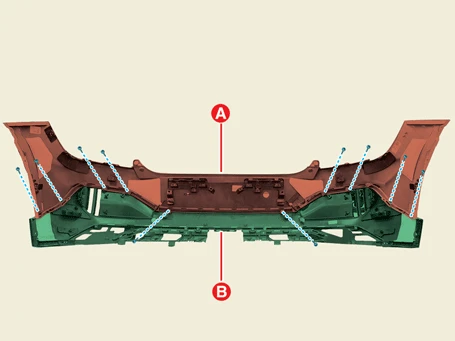

4.Remove the rear bumper upper cover (A) and the rear bumper lower cover (B) after removing the screws.
5.Remove the rear bumper skid plate assembly (A) after removing the screws.

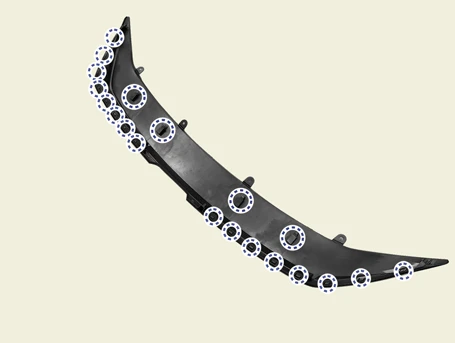

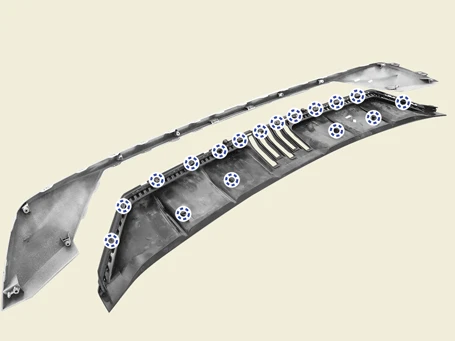

6.Remove the rear bumper skid plate (A) after removing the screws.
Reassembly
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Reassemble in the reverse order of disassembly.
