Description
IFS Head Lamp System

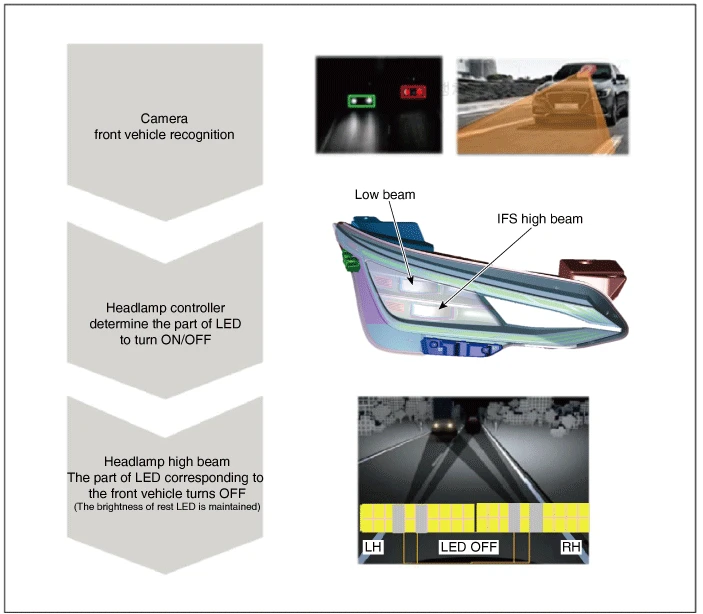

The Intelligent Front-lighting System (IFS) is a new high beam system for improving visibility of driver and opposite drivers when driving at nightIn the past, when an opposing/preceding vehicle appeared, the driver turned off the high beam manually or in case of the vehicle fitted with the HBA, the entire high beam turned off, which caused the driver's forward visibility to worsen. However, in case of the IFS head lamp, the part of LED corresponding to the opposing / preceding vehicle automatically turns off.-Improved forward visibility by driving all the way with high beam ON-Increased safety of the front vehicle by turning off the part of LED corresponding to the opposing/preceding vehicle
Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
[Intelligent Front-lighting System (IFS) Unit]
1.Remove the crash pad center panel.(Refer to Body - "Crash Pad Panel")

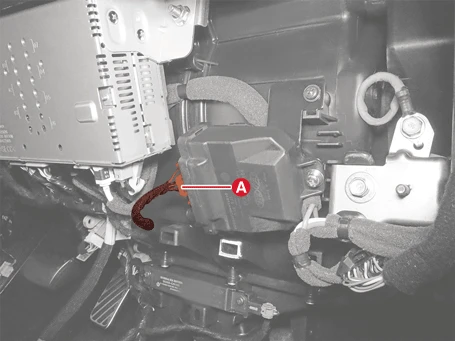

2.Disconnect the IFS unit connector (A).

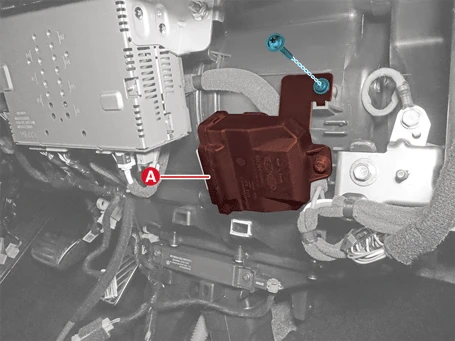

3.Remove the IFS unit (A) after removing the screw.
[Height Sensor]
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")

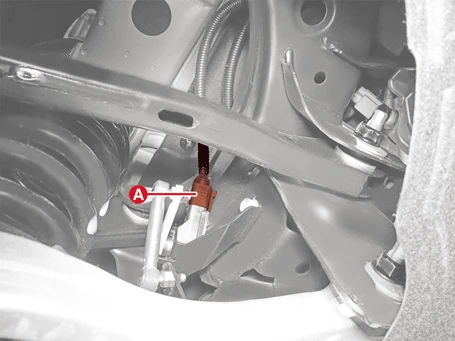

2.Disconnect the height sensor connector (A).

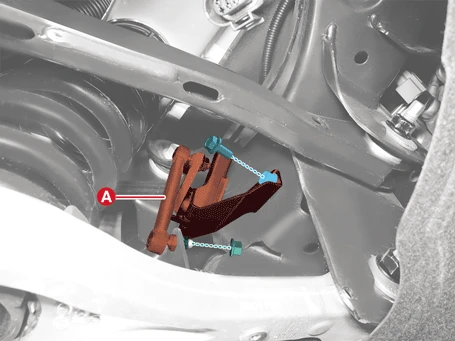

3.Remove the height sensor (A) after removing the bolt and nut.
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

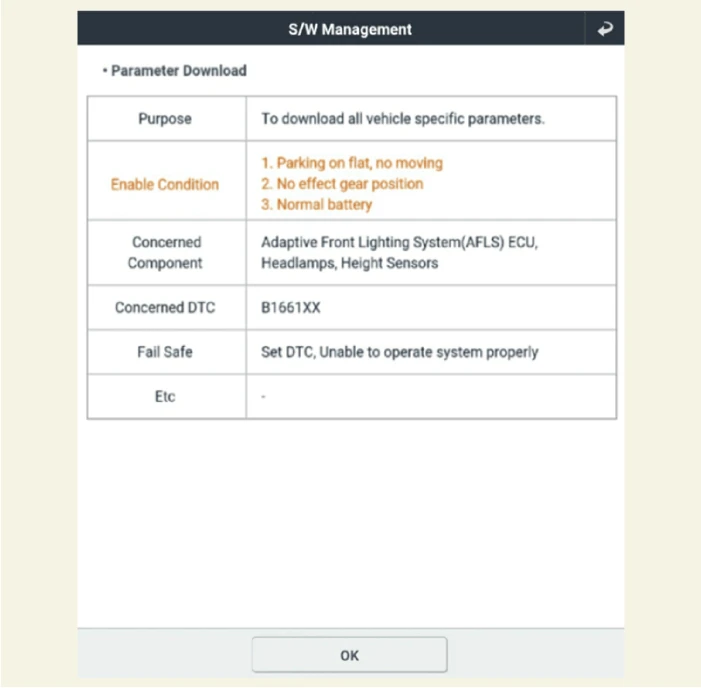

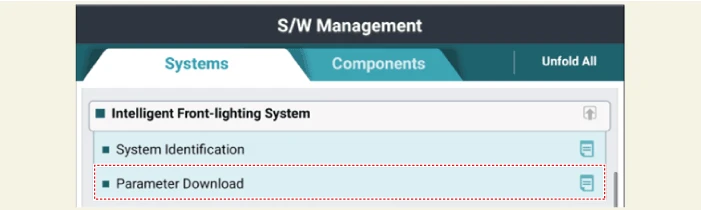

1.Install in the reverse order of removal.
