Description

The air conditioner pressure transducer measures the pressure in the high-pressure line and converts it into a voltage value. When the converted output value is sent to the VCU, the VCU operates the cooling fan at high and low speeds to prevent pressure rise, and if the refrigerant pressure is too high or too low, the compressor stops working to optimize and protect the air conditioning system.

Removal



• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or electric leakage.

• When working a high voltage system, the technician must be observed and aware of "High Voltage System General Safety Information and Caution". If not, it may cause serious accidents such as electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.

[2WD]

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")

2.Remove the front trunk.(Refer to Body - "Front Trunk")

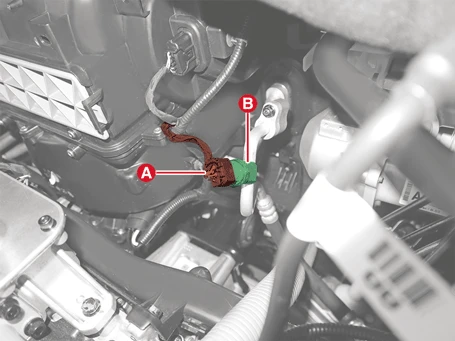

3.Remove the A/C transducer (B) after disconnecting the A/C transducer connector (A).

Tightening torque :9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

[Temperature]

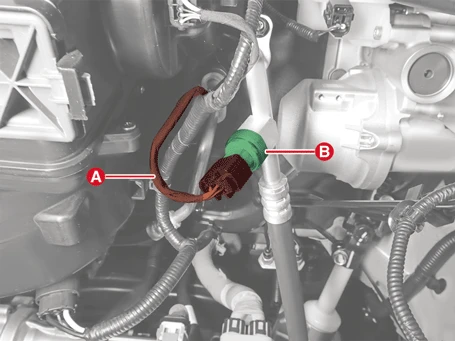

[Pressure]



Be careful not to bend the liquid suction pipe.

[4WD]

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")

2.Remove the front trunk.(Refer to Body - "Front Trunk")

3.Remove the air conditioner pressure transducer.



Be careful not to bend the liquid suction pipe.

Tightening torque :9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

[Temperature]

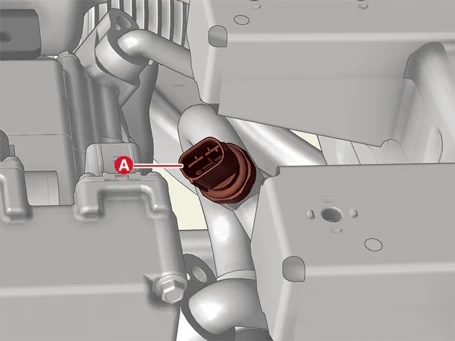

(1)Disconnect the A/C transducer connector (A).

(2)Remove the A/C transducer (A).

[Pressure]

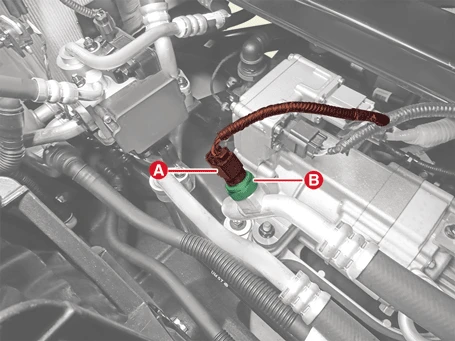

(1)Remove the A/C transducer (B) after disconnecting the A/C transducer connector (A).

Installation



• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or electric leakage.

• When working a high voltage system, the technician must be observed and aware of "High Voltage System General Safety Information and Caution". If not, it may cause serious accidents such as electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.

1.Install in reverse order of removal.



When installing, replace the O-ring with a new one.
