Removal
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working a high voltage system, the technician must be observed and aware of "High Voltage System General Safety Information and Caution". If not, it may cause serious accidents such as electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Shut off the high voltage circuit.(Refer to Heating, Ventilation and Air Conditioning - "High Voltage Shut off Procedure")
2.Recover the refrigerant with recovery/recycling/charging equipment.(Refer to Air Conditioning - "Refrigerant Recovery/Recycling/Charging/Evacuation")
3.Remove the floor carpet.(Refer to Body - "Floor Carpet")
4.Remove the cowl cross bar assembly.(Refer to Body - "Cowl Cross bar Assembly")

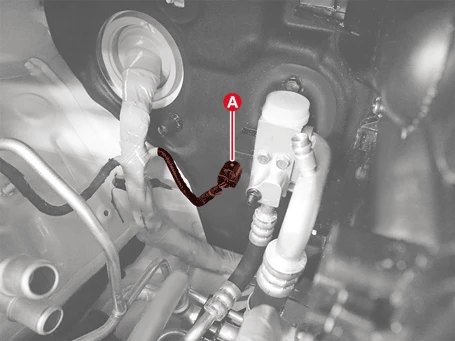

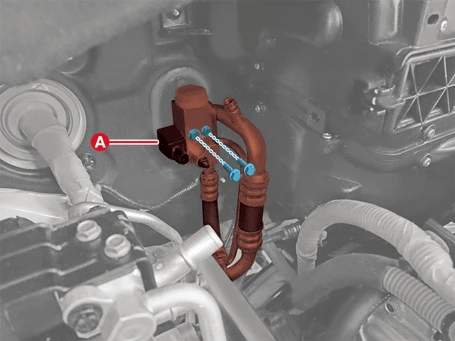

5.Disconnect the expansion valve connector (A).

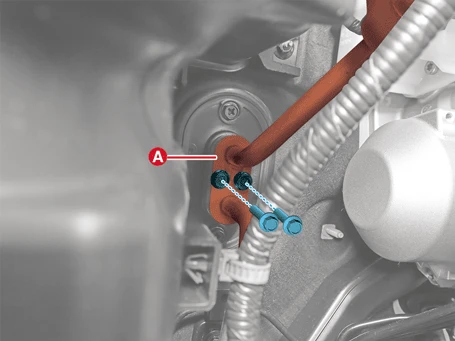

6.Separate the suction & liquid line (A) after removing the bolts.
Tightening torque :8.8 - 13.7 N·m (0.9 - 1.4 kgf·m, 6.5 - 10.1 lb·ft)
[Inner Condenser]
[Evaporator Core]

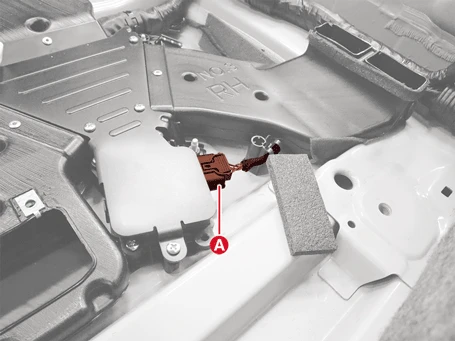

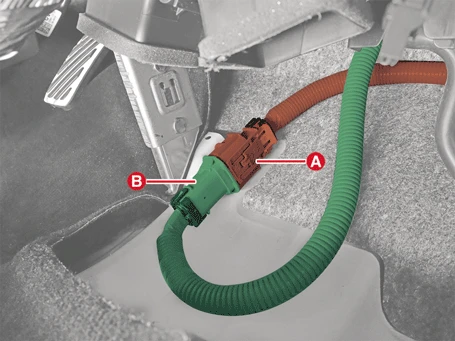

7.Disconnect the cable (B) connected to the vehicle body after disconnecting the PTC heater high voltage cable connector (A).

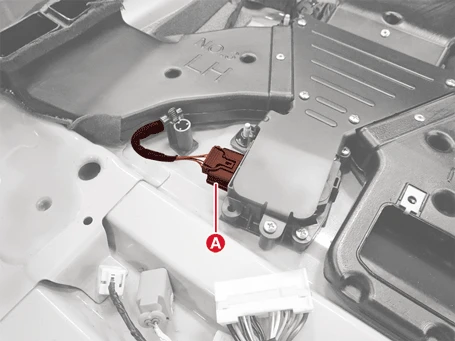

8.Remove the connector (A) connected to the rear heating duct.[Driver's side]

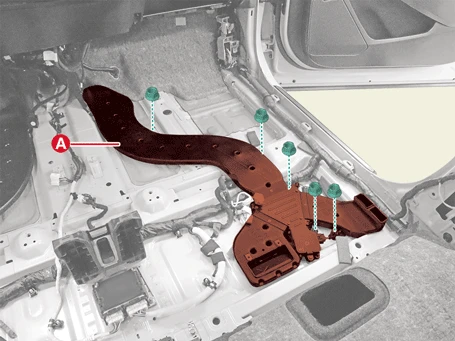

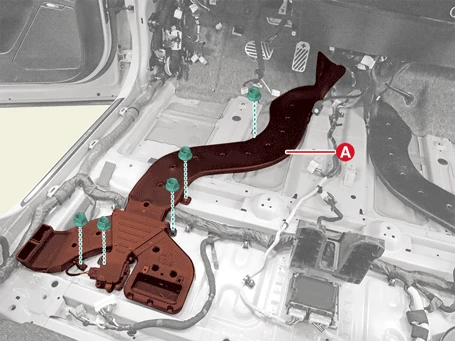

9.Remove the rear heating duct (A) after removing the nuts.[Driver's side]

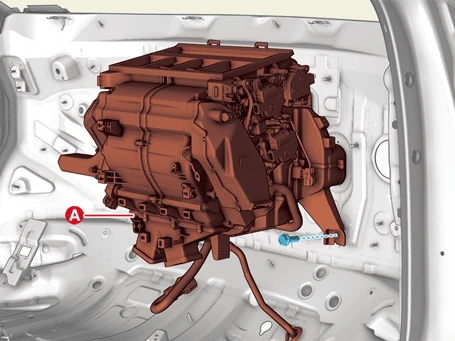

10.Remove the heater unit (A) after removing the bolt.
Tightening torque :8.8 - 13.7 N·m (0.9 - 1.4 kgf·m, 6.5 - 10.1 lb·ft)
Installation
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working a high voltage system, the technician must be observed and aware of "High Voltage System General Safety Information and Caution". If not, it may cause serious accidents such as electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Install in reverse order of removal.
