Kia EV6 (CV) 2022–2025 Workshop Manual

Cooling System / Active Air Flap(AAF) / Components and Components Location /

Kia EV6: Components and Components Location

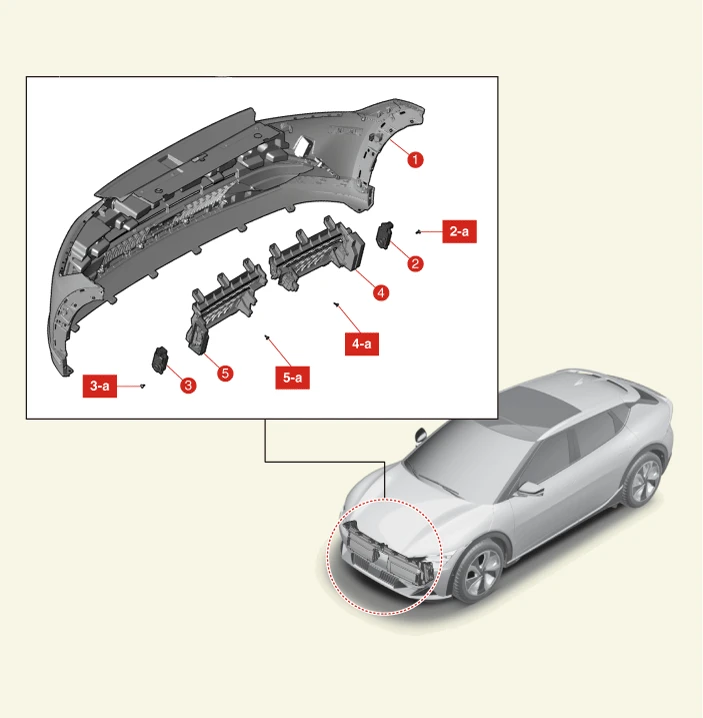

Component Location

Kia EV6. Components and Components Location

1. Front Bumper
2. Active Air Flap (AAF) Actuator [RH]
2-a. 1.0 - 2.0 N·m (0.1 - 0.2 kgf·m, 0.7 - 1.4 lb·ft, 8.7 - 17.4 lb·in)
3. AAF Actuator [LH]
3-a. 1.0 - 2.0 N·m (0.1 - 0.2 kgf·m, 0.7 - 1.4 lb·ft, 8.7 - 17.4 lb·in)
4. AAF [RH]
4-a. 1.0 - 2.0 N·m (0.1 - 0.2 kgf·m, 0.7 - 1.4 lb·ft, 8.7 - 17.4 lb·in)
5. AAF [LH]
5-a. 1.0 - 2.0 N·m (0.1 - 0.2 kgf·m, 0.7 - 1.4 lb·ft, 8.7 - 17.4 lb·in)

Active Air Flap(AAF)

...

PREV

Removal and Installation

Removal Active Air Flap(AAF) 1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refe ...
