Description
In the event of a front collision, SRS Control Module (SRSCM) determines whether and when to deploy the Driver Airbag (DAB), Passenger Airbag (PAB) and seat Belt Pretensioner (BPT) module by using the front impact sensor signal.Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")
2.Remove the front impact sensor (B) by removing the nut after disconnecting the connector (A).
Tightening torque :7.8 - 9.8 N·m (0.8 - 0.9 kgf·m, 5.8 - 6.5 lb·ft)

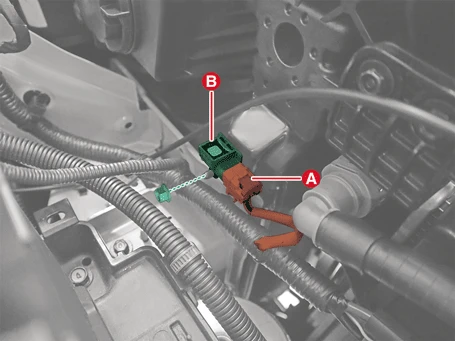

[Driver's side]

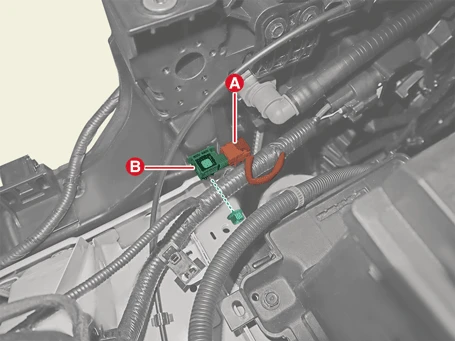

[Passenger's side]
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in reverse order of removal.
2.After installing the front impact sensor, make sure that the system operates normally.
