Kia EV6 (CV) 2022–2025 Workshop Manual

Restraint / Airbag Module / Components and Components Location /

Kia EV6: Components and Components Location

Component

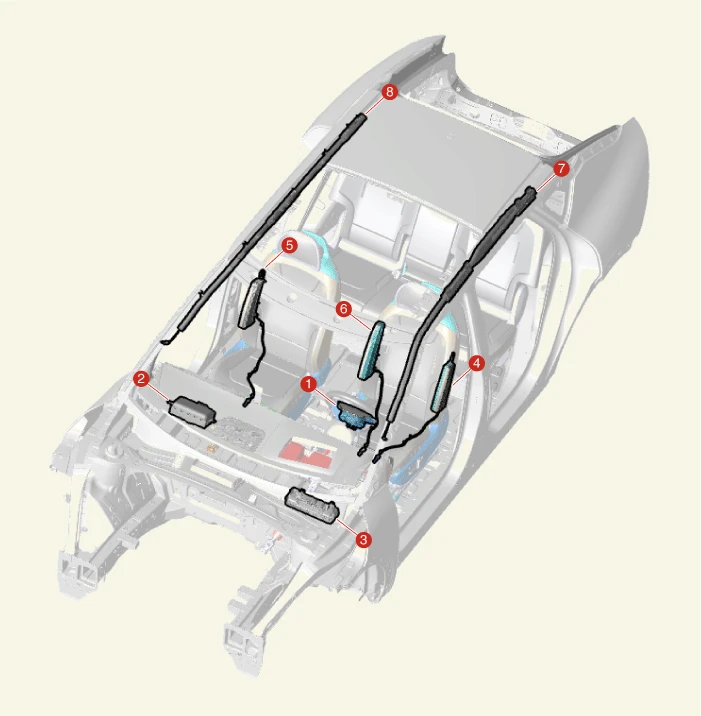

Kia EV6. Components and Components Location

1. Driver Airbag (DAB) Module
2. Passenger Airbag (PAB) Module
3. Knee Airbag (KAB) Module
4. Driver Side Airbag (SAB) Module
5. Passenger Side Airbag (SAB) Module
6. Center Side Airbag (CSAB) Module
7. Curtain Airbag (CAB) Module [LH]
8. Curtain Airbag (CAB) Module [RH]

Airbag Module

...
