Kia EV6: Description and Operation

Description

Regeneration Brake System

Regenerative braking system refers to a system that charges batteries by converting kinetic energy generated during vehicle deceleration and braking into electrical energy.The amount of regenerative braking is determined by the speed of the vehicle, the amount of charge of the battery, etc.It is possible to improve energy efficiency when driving in urban areas where acceleration and deceleration are repeated.

Operation of the regeneration brake system

The distribution of braking forces is allocated by controlling hydraulic braking, and the overall braking force (hydraulic + regeneration) is become the braking force required by the driver.If regenerative braking is not performed due to failure, etc., the overall braking force required by the driver is supplied by the hydraulic braking system.

Brake mode

The driver can change the brake mode to 'Normal' or 'Sports' mode on the AVNT. Depending on the mode selected, hydraulic pressure is adjusted in the Integrated Electric Brake (IEB) to provide braking performance.Normal mode : Normal braking mode provides balanced braking performance.Sport mode : It provides a stronger braking force by providing higher hydraulic pressure to the same pedal stroke compared to the normal mode.

Operation

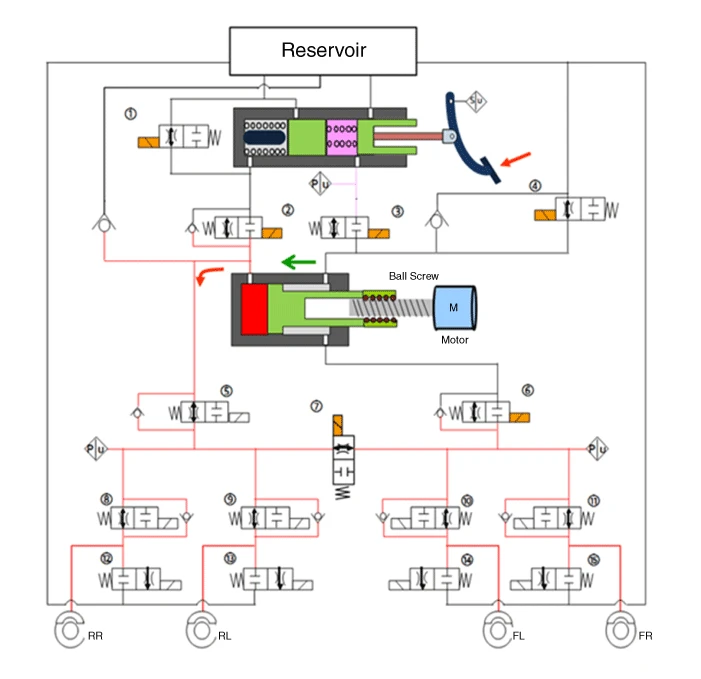

General Braking

Kia EV6. Description and Operation

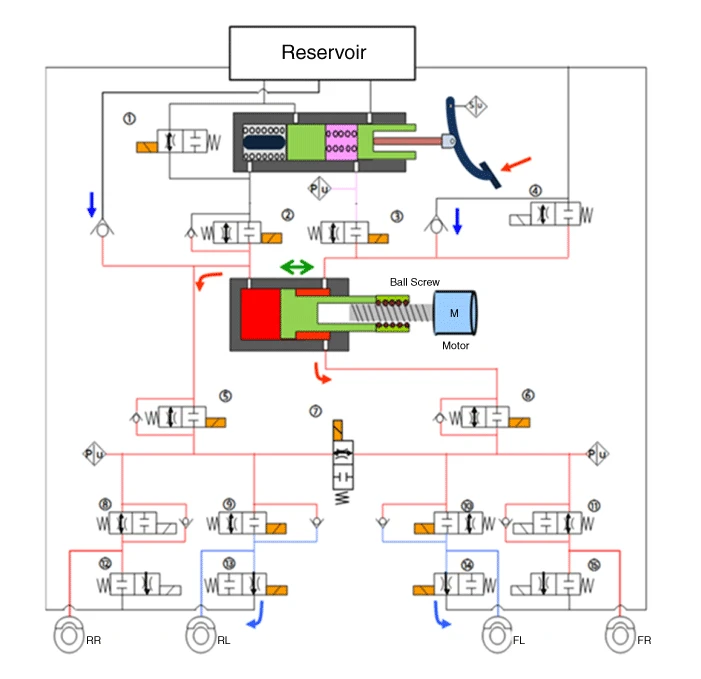

ABS

Kia EV6. Description and Operation

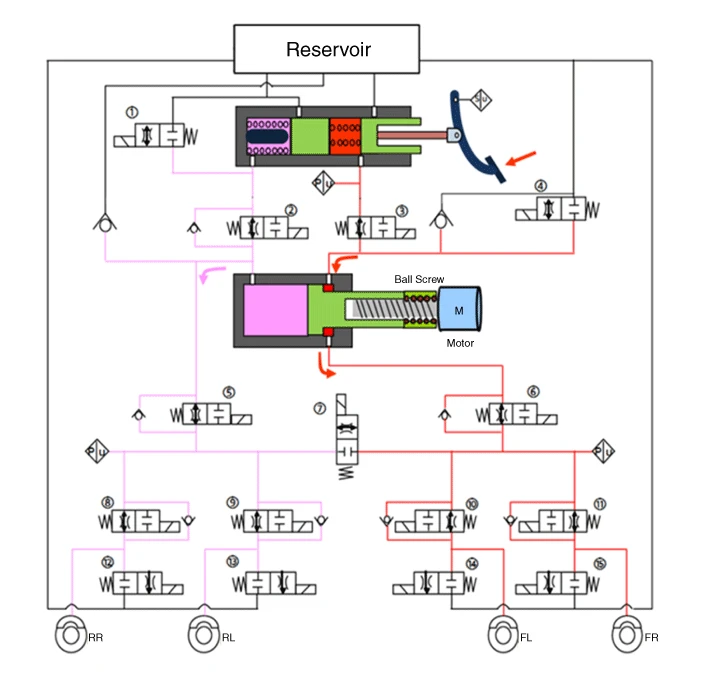

Back up Braking (IEB Fail)

Kia EV6. Description and Operation
