Specification
| Item | Specification | |
| Rated Voltage (V) | 12 | |
| Operating Voltage (V) | 9 - 16 | |

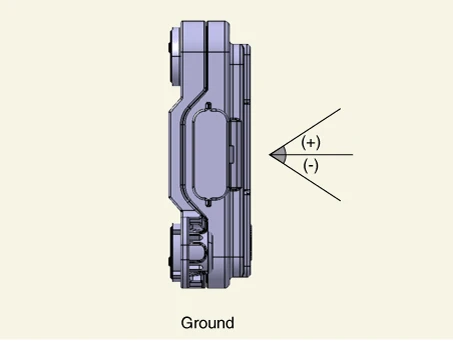

| Mounting angle (°) | Horizontal | -0.8 ~ 0.8 |
| Vertical | -1.4 ~ 0.6 | |
Troubleshooting
On Vehicle Inspection
If there is a problem with the forward radar, check the items below.1.Checking bumper cleanliness: If the bumper is contaminated with snow or dust, may be disable during operation.
2.Check the condition around the bumper: Warning lights may occur if metal stickers or foreign substances are attached to the radar.
3.Checking bumper geometry or mounting status: Warning lights may turn ON if bumper or radar is not properly installed after an accident.
4.Check the bumper, radar bracket, or radar when a fault code occurs.
• Bumper : Mounting state, bumper external deformation.
• Radar bracket : Mounting status, radar bracket deformation.
• Radar : Poor radar nut engagement, radar debris contamination.
Diagnostic Faults Using KDS
1.The Advanced driver assistance system driving can be more quickly diagnosed for problems by using the KDS (Refer to "DTC guide").
(1)Self diagnosis : Inspection and display failed code (DTC)
(2)Sensor data : Checks the system input / output values
(3)Forced operation : Checking the system operation condition
(4)Additional function : Controlling other features including system option setting and zero point adjustment
Removal
• When working on high voltage system, the work should be carried by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working a high voltage system, the technician must be observed and aware of "High Voltage System General Safety Information and Caution". If not, it may cause serious accidents such as electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")
2.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly")
3.Remove the front radar.

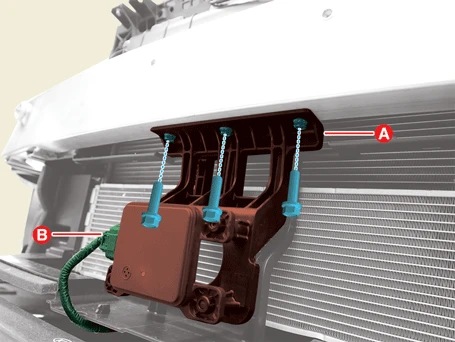

(1)Disconnect the front radar connector (B).

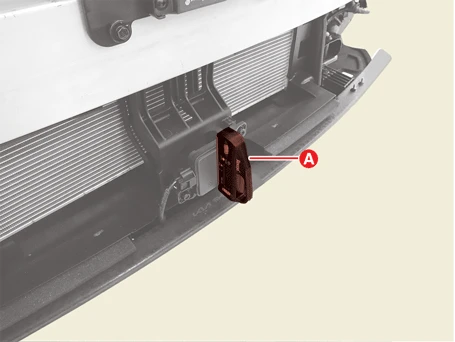

(2)Remove the front radar (A) after removing the bolts.
Installation
• When working on high voltage system, the work should be carried by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working a high voltage system, the technician must be observed and aware of "High Voltage System General Safety Information and Caution". If not, it may cause serious accidents such as electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
• Check for vehicle alignment and tire pressure for accurate radar calibration.
• Make sure the vehicle does not sag. (Check the suspension problem)
• Put the vehicle on the level ground.
• Check that the front surface of the front radar is clean.

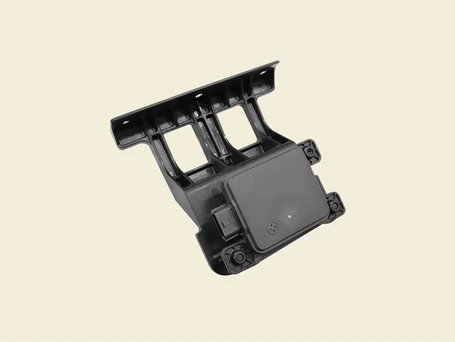

1.Before installing the front radar, check the last 2 digits of the Lot, No(A). The label is on the back of the front radar.
2.Install the front radar.
(1)Install the front radar (A) after tightening the nuts.
Tightening torque :8.8 - 10.8 N·m (0.9 - 1.1kgfㆍm, 6.5 - 8.0 lb·ft)
(1)Connect the front radar connector (B).
3.Check and align the front radar mounting angle.

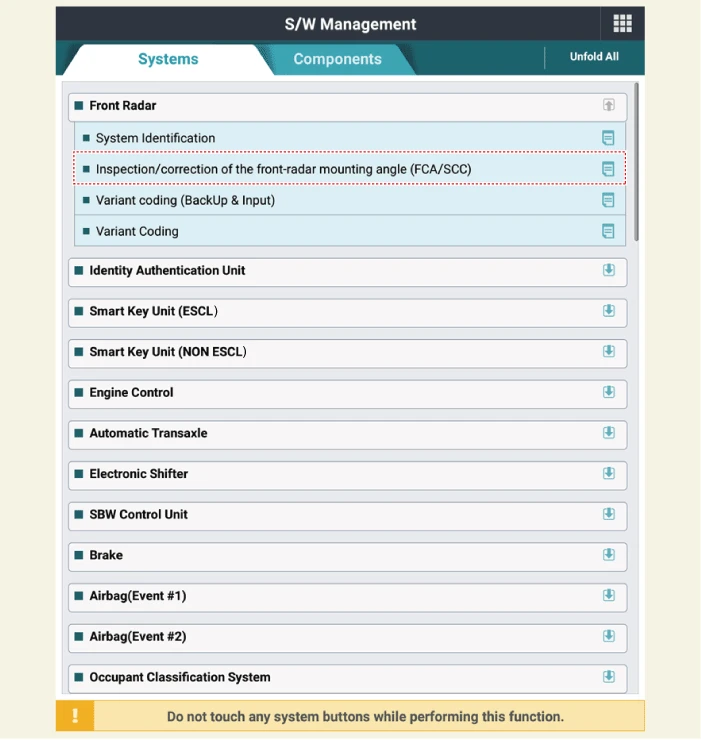

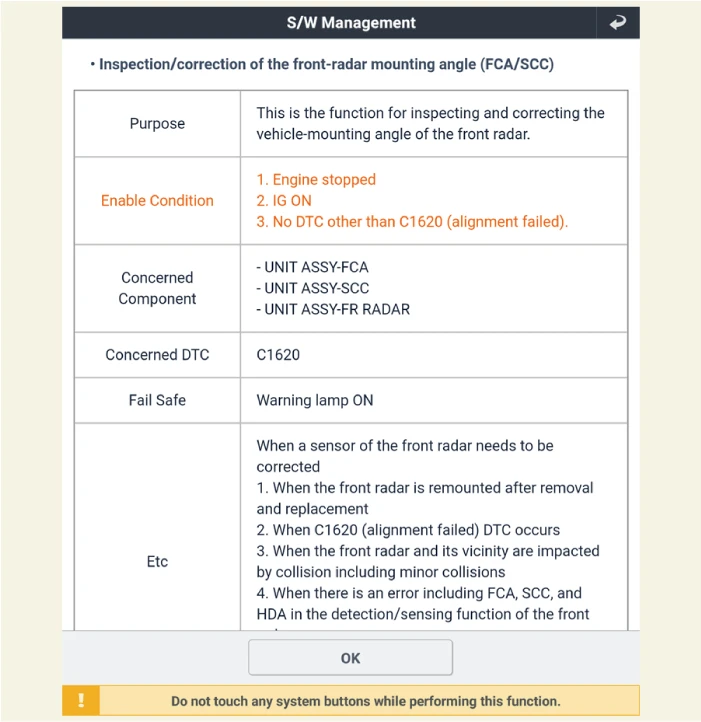

(1)Perform the “inspection / correction of the front - radar mounting angle” using the KDS.

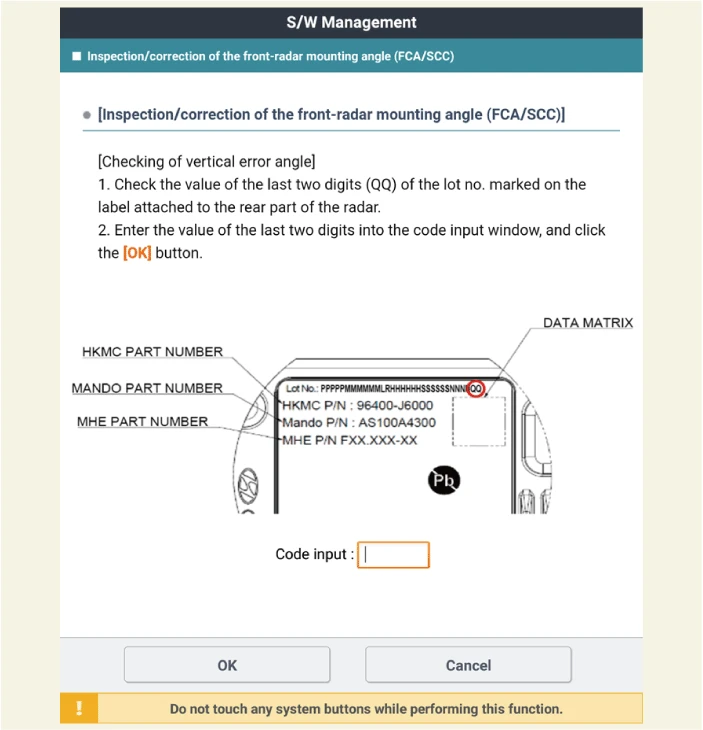

(2)Input the 2 digit value in the code input box, then press "OK"

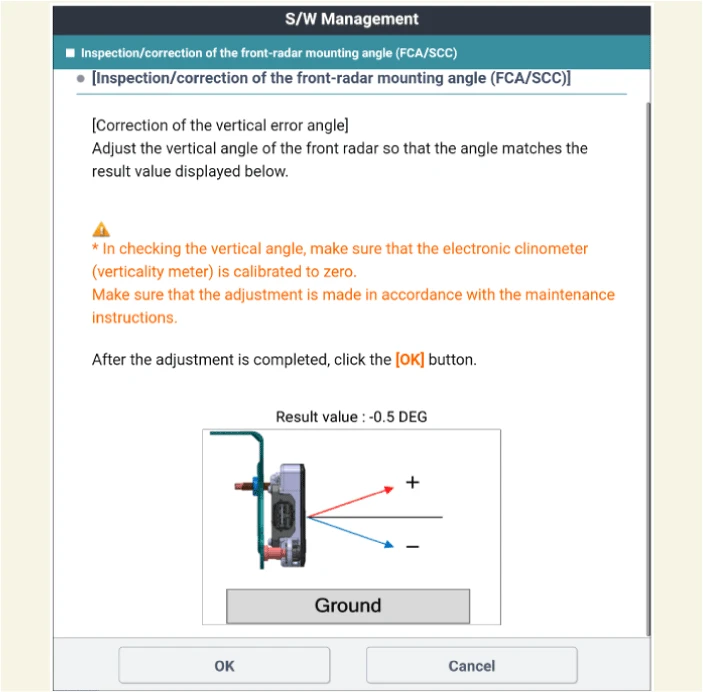

(3)Check for any compensated vertical angle errors in KDS.
(4)Check the front radar vertical angle by using the digital inclinometer.
• Make sure to perform zero setting before using vertical protractor.
• Be careful with + / - readings when finding true vertical using vertical protractor.

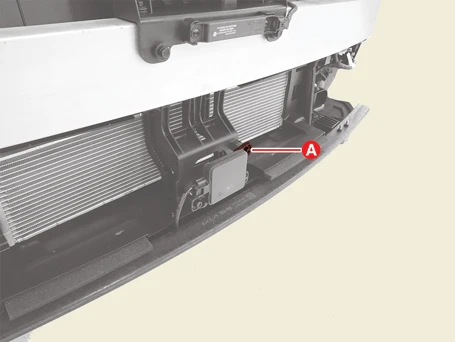

(5)Adjust to "target vertical angle" by turning the adjusting screw (A) of the front radar.
– turn clockwise : adjusting ( + ) angle
– turn counterclockwise : adjusting ( - ) angle
• Adjustment of the bracket can be applied using manual pressure.
• Must recheck with vertical protractor if vertical angle is right after adjusting.
| Number of turns | Variation of angle | |
| Clockwise | Counter clockwise | |
| 0.5 | + 0.5° | - 0.5° |
| 1 | + 1.0° | - 1.0° |
| 1.5 | + 1.5° | - 1.5° |
| 2 | + 2.0° | - 2.0° |
| 2.5 | + 2.5° | - 2.5° |
| 3 | + 3.0° | - 3.0° |
| 3.5 | + 3.5° | - 3.5° |
| 4 | + 4.0° | - 4.0° |
| 4.5 | + 4.5° | - 4.5° |
| 5 | + 5.0° | - 5.0° |
• Make sure that there is no foreign or reflective objects on the surface of the radar.
• Make sure that there is no foreign or reflective objects on the radiator grille.
1.Install the front bumper assembly.(Refer to Body - "Front Bumper Assembly")
2.Perform the front radar inspection / correction procedure by using the SSTs.(Refer to Front Radar Unit - "Adjustment")
Special Service Tools
| Tool Name / Number | Illustration | Description |
|
SCC Setting Beam 09964 - C1200 |
|
Used for front radar unit setting. Used for front view camera unit setting. |
|
Front Radar Setting Tripod 09964 - C1300 |
|
Used for front radar unit setting |
|
Front Radar Setting Reflector 09964 - C1100 |
|
Used for front radar unit setting |
|
Calibration Reflector 0K964 - J5100 |
|
Used for front radar unit setting |
Adjustment
Front radar installation angle checking / adjustment overview
The front radar detects the object in front of the vehicle, and recognizes the distance from the object, comparing speed, etc. for these reasons the direction of installation has to be linear with vehicle.Performing angle inspection and adjustment have to be done in case of the front radar repairs caused by accident or failure and replacement of a new front radar.Accuracy of the front radar cannot be guaranteed if inspection and adjustment have not been performed properly.Front radar inspection / calibration is performed using the KDS.Perform adjustment procedure with exclusive SST for front radar inspection / calibration.
• Front radar has been replaced
• Calibration failure DTC is present.
• In the case of a contact accident or a strong impact on the sensor or its periphery.
• Front radar detecting and recognition function failure.
– Failed to detect vehicle in front while functioning.
– Often detecting error of road side lane.
– Often detecting error of object when no objects are present.
How to check / adjust front radar installation angle - Stop mode
• Check for vehicle alignment and tire pressure for accurate radar calibration.
• Put the vehicle on the level ground.
• Check that the front surface of the front radar is clean.

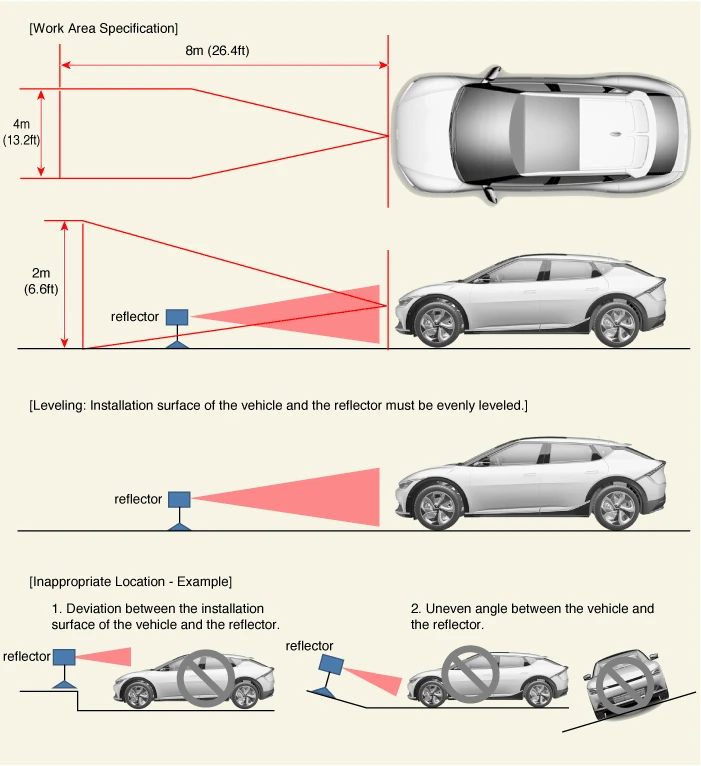

• Perform in an area with minimum clearance of 8 m (26.4 ft.) front, 4 m (13.2 ft.) sides, and 2 m (6.6 ft.) above the vehicle.
• The reflector has to be installed at same place (height and angle) as front radar center. (If height and angle are different, then adjustment can not be done correctly.)
• Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where front radar alignment is performed.
• Be sure that the vehicle is not moved and free from vibration when performing front radar alignment (getting in / out or opening / closing doors).
• When performing front radar alignment, the ignition has to be in the ON position (not in Ready mode).
1.Park the vehicle on a flat ground.

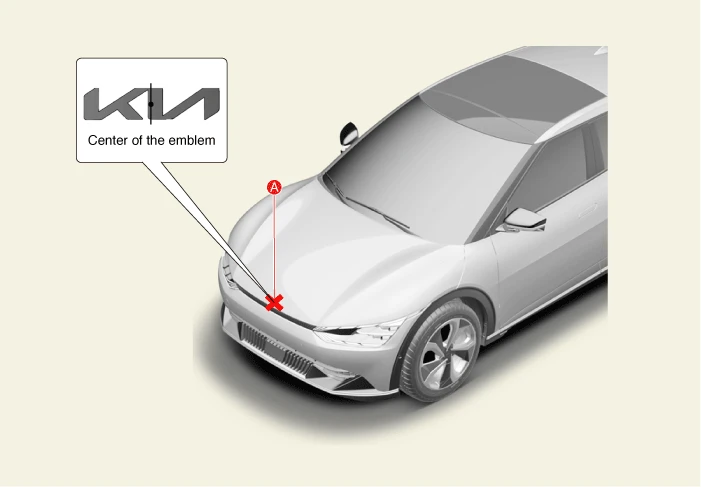

2.Mark the center point of emblem (A).

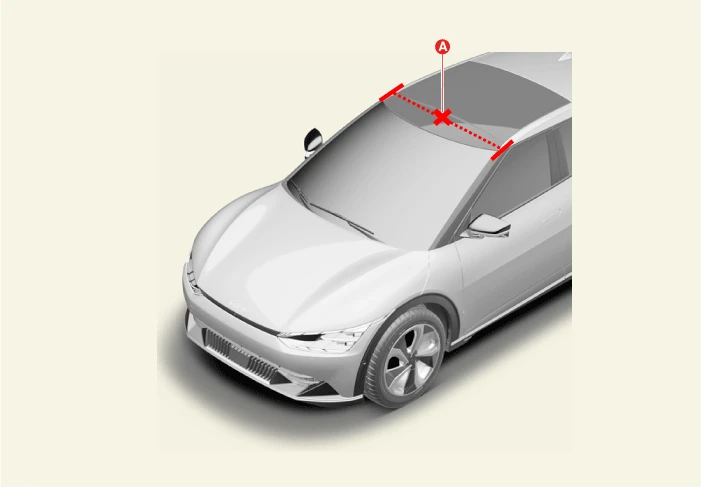

3.Mark the center point (A) after measuring the distance on top of the windshield glass.

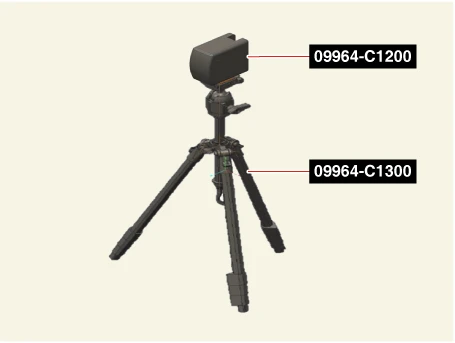

4.Mount the SCC setting beam (09964 - C1200) on the front radar setting tripod (09964 - C1300).

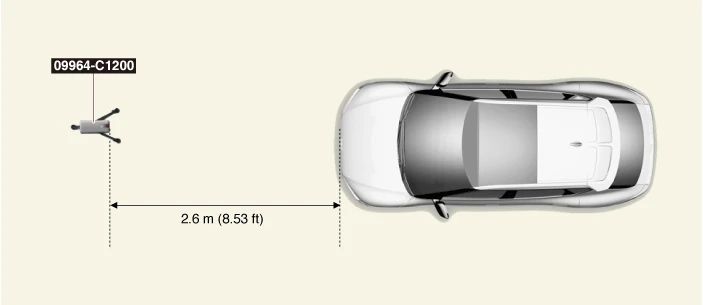

5.Place the SCC setting beam (09964 - C1200) at 2.6 m (8.53 ft) away from the front of the vehicle.

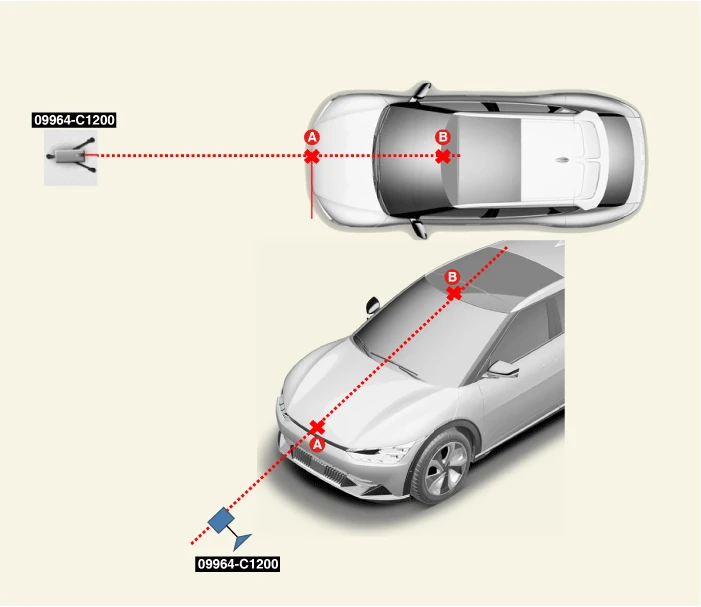

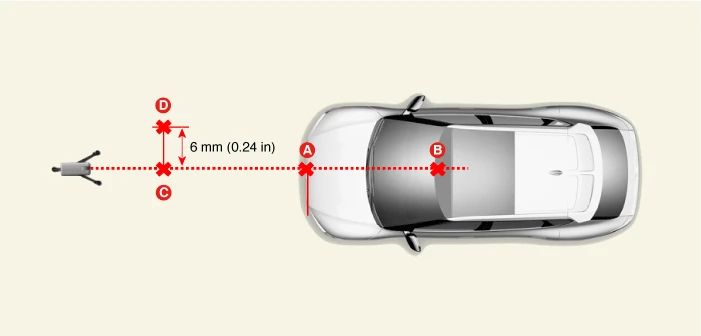

6.Match the vertical line of laser to (A) and (B) using the SCC setting beam (09964 - C1200)

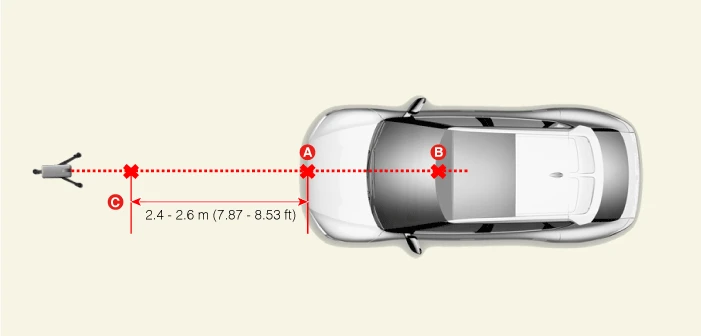

7.Mark the location (C) at 2.4 - 2.6 m (7.87 - 8.53 ft) away from (A) in front of the vehicle.
8.Mark the location (D) as shown below at 6 mm (0.24 in) away from (C) to the left (passenger side) of the vehicle.
9.Remove the SCC setting beam (09964 - C1200) from the front radar setting tripod (09964 - C1300).

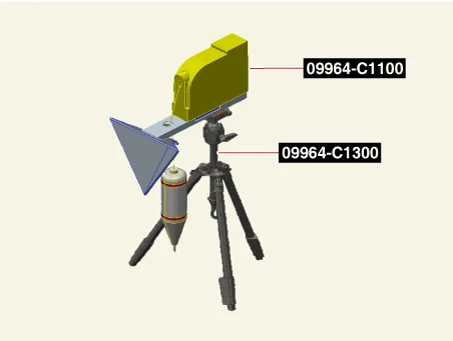

10.Mount the front radar setting reflector (09964 - C1100) to the front radar setting tripod (09964 - C1300).

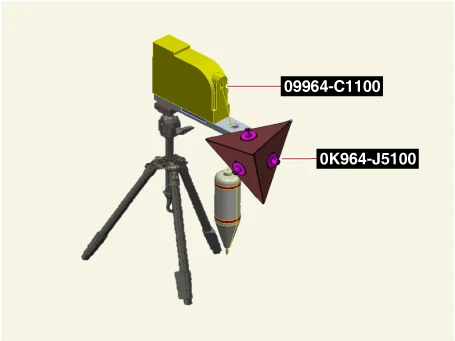

11.Mount the calibration reflector (0K964 - J5100) to the front radar setting reflector (09964 - C1100).

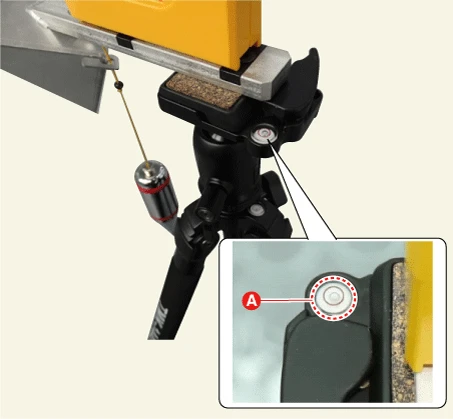

12.Set the reflector horizontal using the leveler (A) which is built in the front radar setting tripod (09964 - C1300).

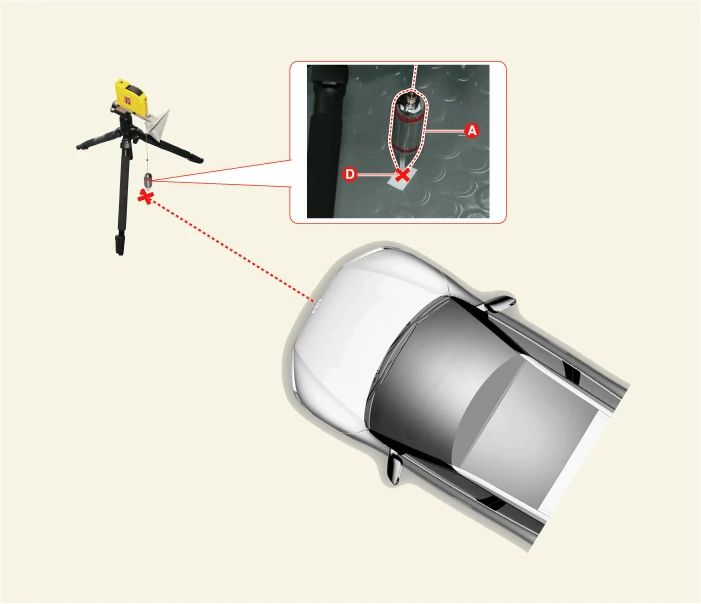

13.Align the plumb bob (A) of the front radar setting reflector (09964 - C1100) with the point (D).

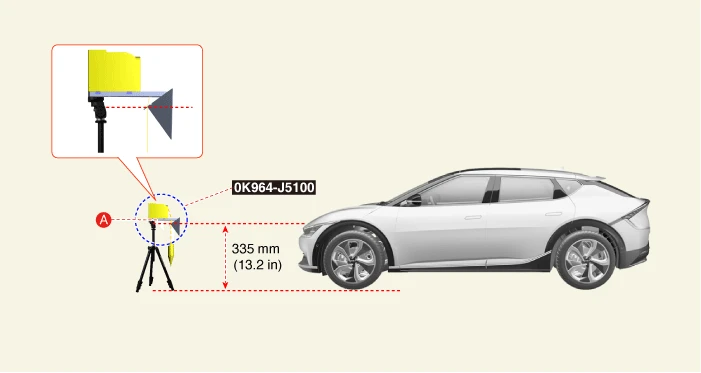

14.Set the height of the calibration reflector (0K964 - J5100) to 335 mm (13.2 in).
15.Remove the plumb bob from the front radar setting reflector (09964 - C1100).
16.Visually check again the front radar and the surface of front bumper for the following items.
• Make sure that there is no foreign or reflective objects on the surface of the radar.
• Make sure that there is no foreign or reflective objects on the radiator grille.

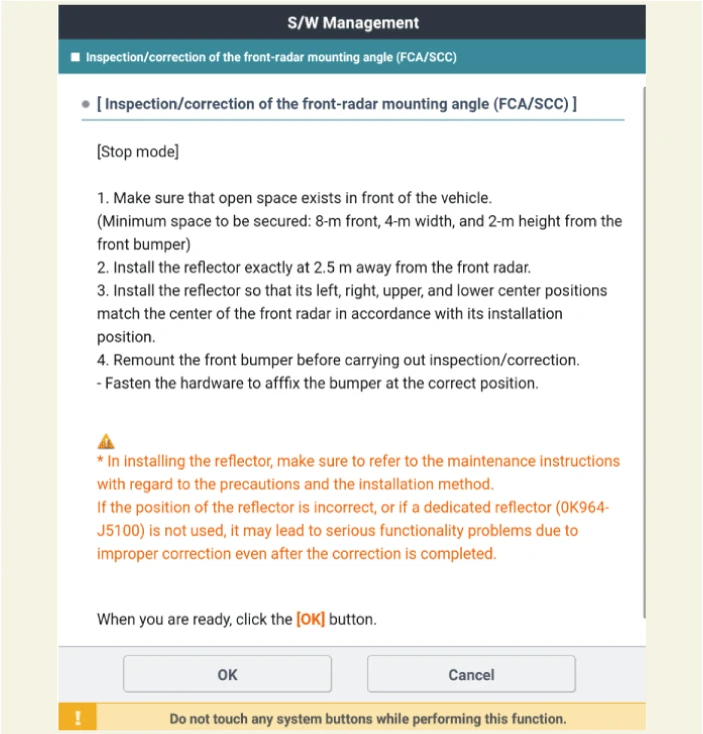

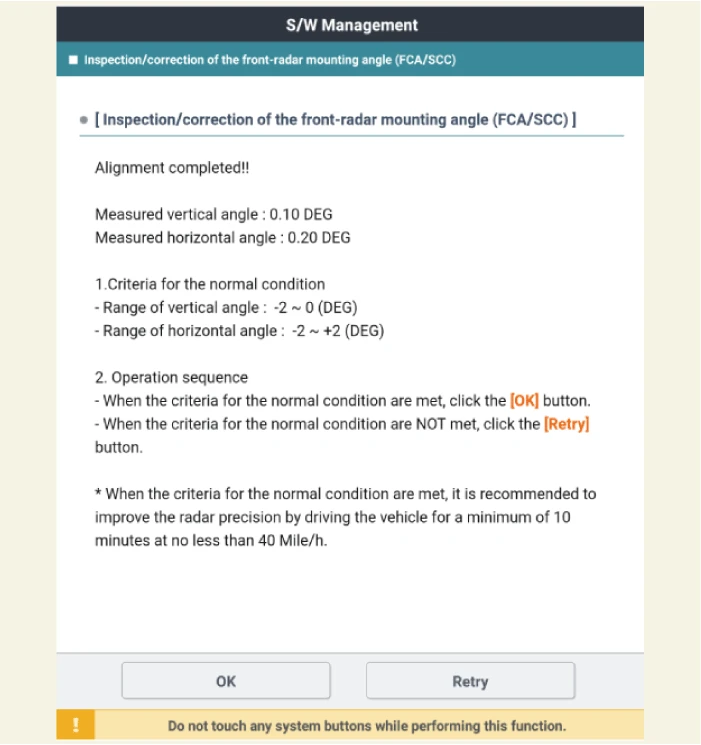

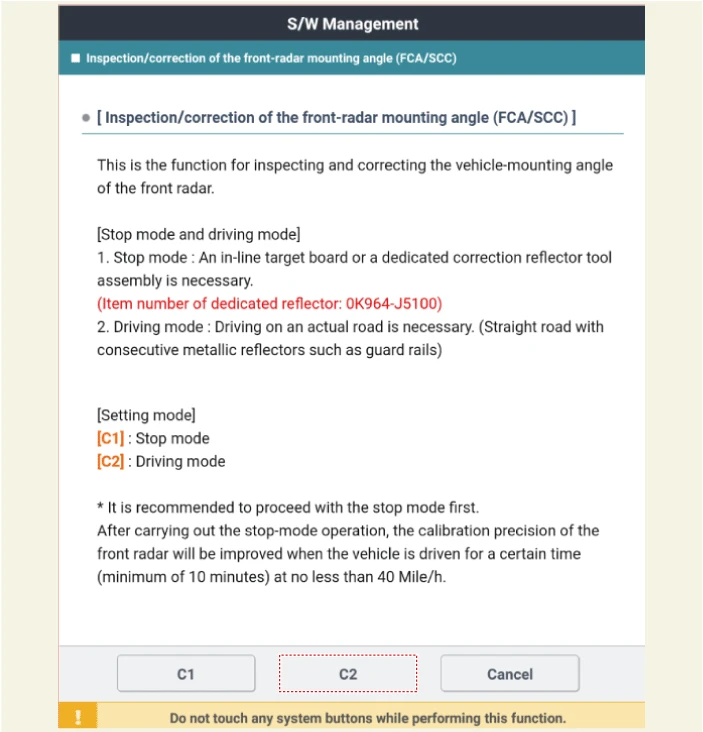

17.Select C1 (stop mode) and follow the procedure on KDS to inspect and adjust the front radar installation angle.
18.In case of front radar inspection / correction failure, check the inspection / correction conditions.
How to check / adjust front radar installation angle - Driving mode
If the stop mode operation is not possible, the front radar calibration operation is performed using the driving mode.
• Put the vehicle on the level ground.
• Take out heavy luggage from the vehicles’ seats or trunk.
• Set all tires according to the specified pressure.
• Check wheel alignment.
• Check that the front surface of the front radar is clean.

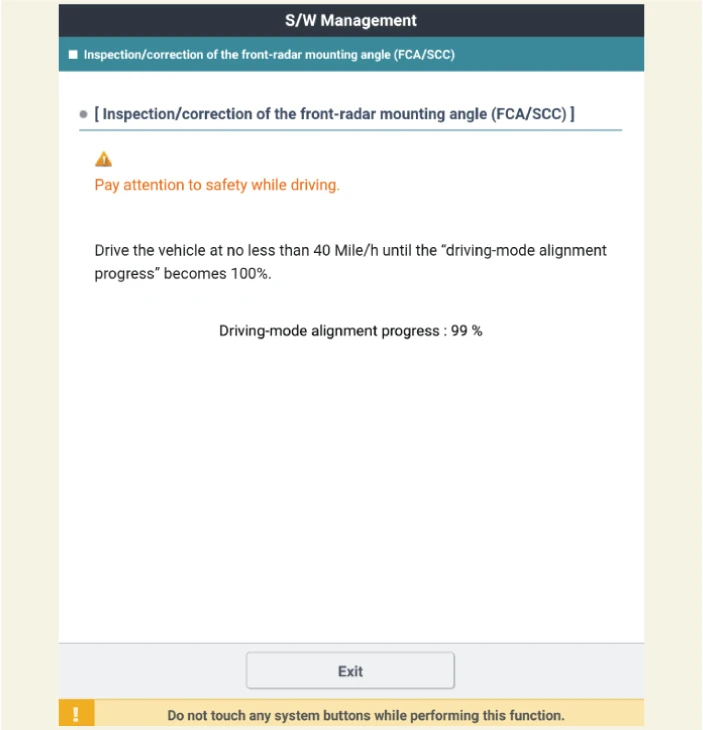

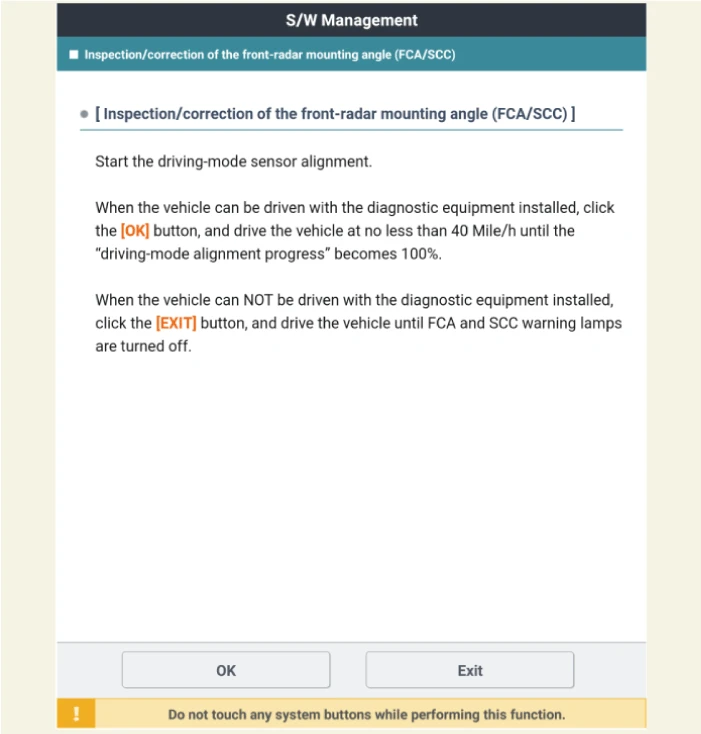

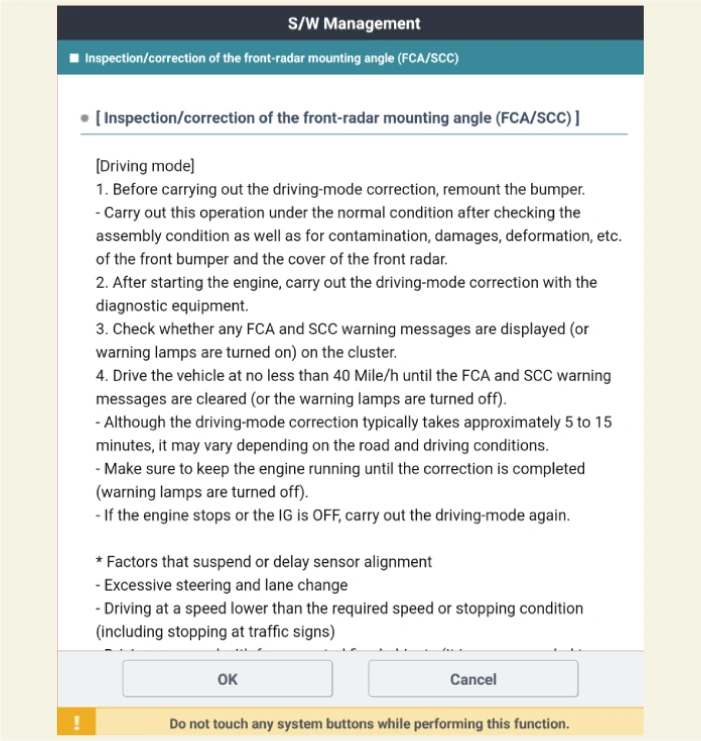

1.Select C2 (driving mode) and follow the procedure on KDS to inspect and adjust the front radar installation angle.
2.In case of front radar inspection / correction failure, check the inspection / correction conditions.
